Code P070, Intermittent Throttle Position (TP) Sensor Signal: Action

None.

NOTE: Test number refers to number on diagnostic chart. Reference to CHART 3 refers to POWERTRAIN CHARTS.

Checking Code P070 snapshot value is used to determine if an intermittent low or high voltage caused code to set. An intermittent low voltage can be caused by an open or short to ground in circuit No. 417, an open in circuit No. 474 or a faulty TP sensor. An intermittent high voltage can be caused by an open in circuit No. 808 or a short to voltage on circuit No. 417.

Fig 1: Code P070 Schematic, Intermittent Throttle Position (TP) Sensor Signal

Courtesy of GENERAL MOTORS CORP.

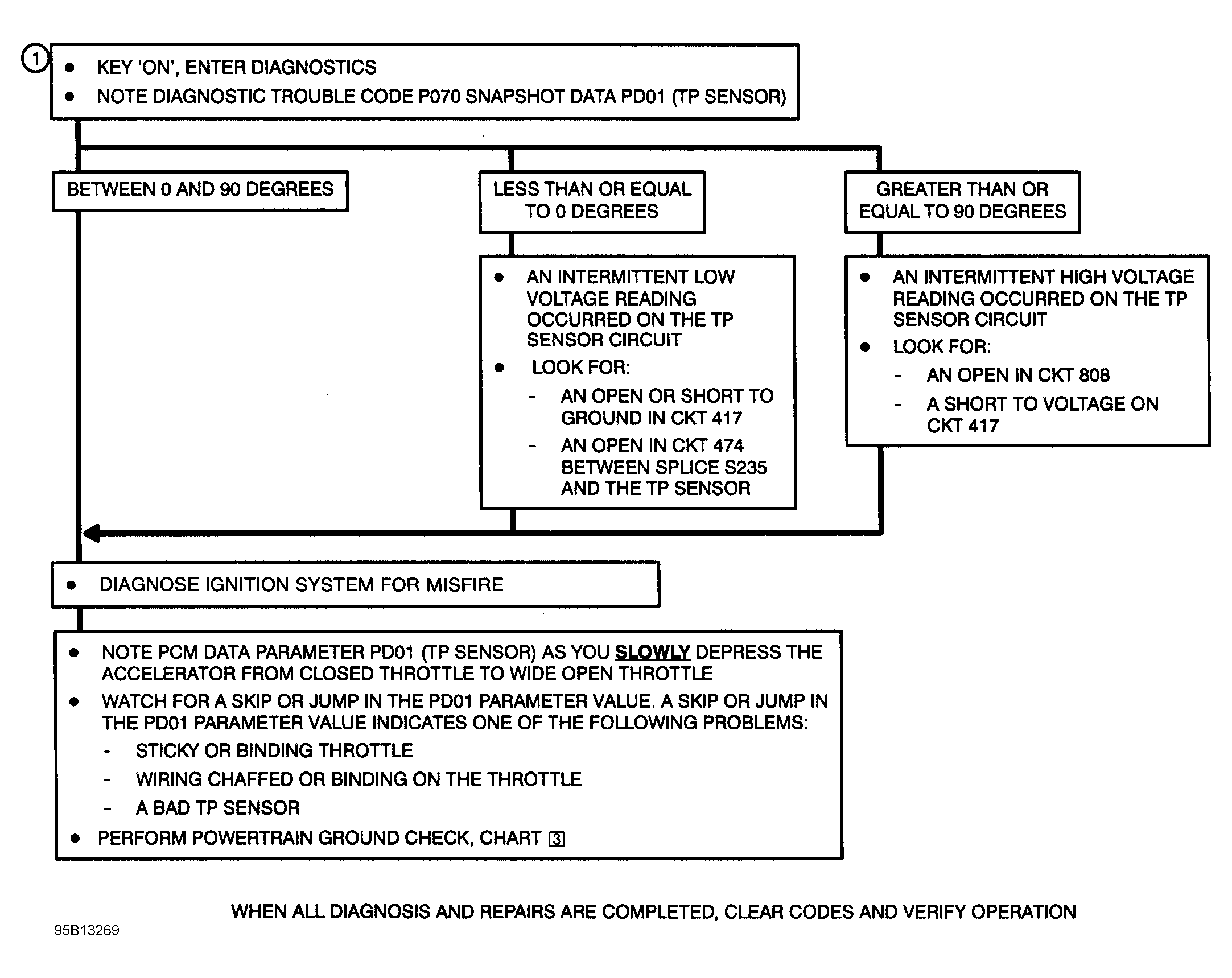

Fig 2: Code P070 Diagnostic Flow Chart, Intermittent TP Sensor Signal

Courtesy of GENERAL MOTORS CORP.
