Code P080, TP Sensor/Idle Learn Not Complete: Actions

PCM turns on MIL.

Fig 1: Code P080 Schematic, TP Sensor/Idle Learn Not Complete
G95B12741Courtesy of GENERAL MOTORS CORP.

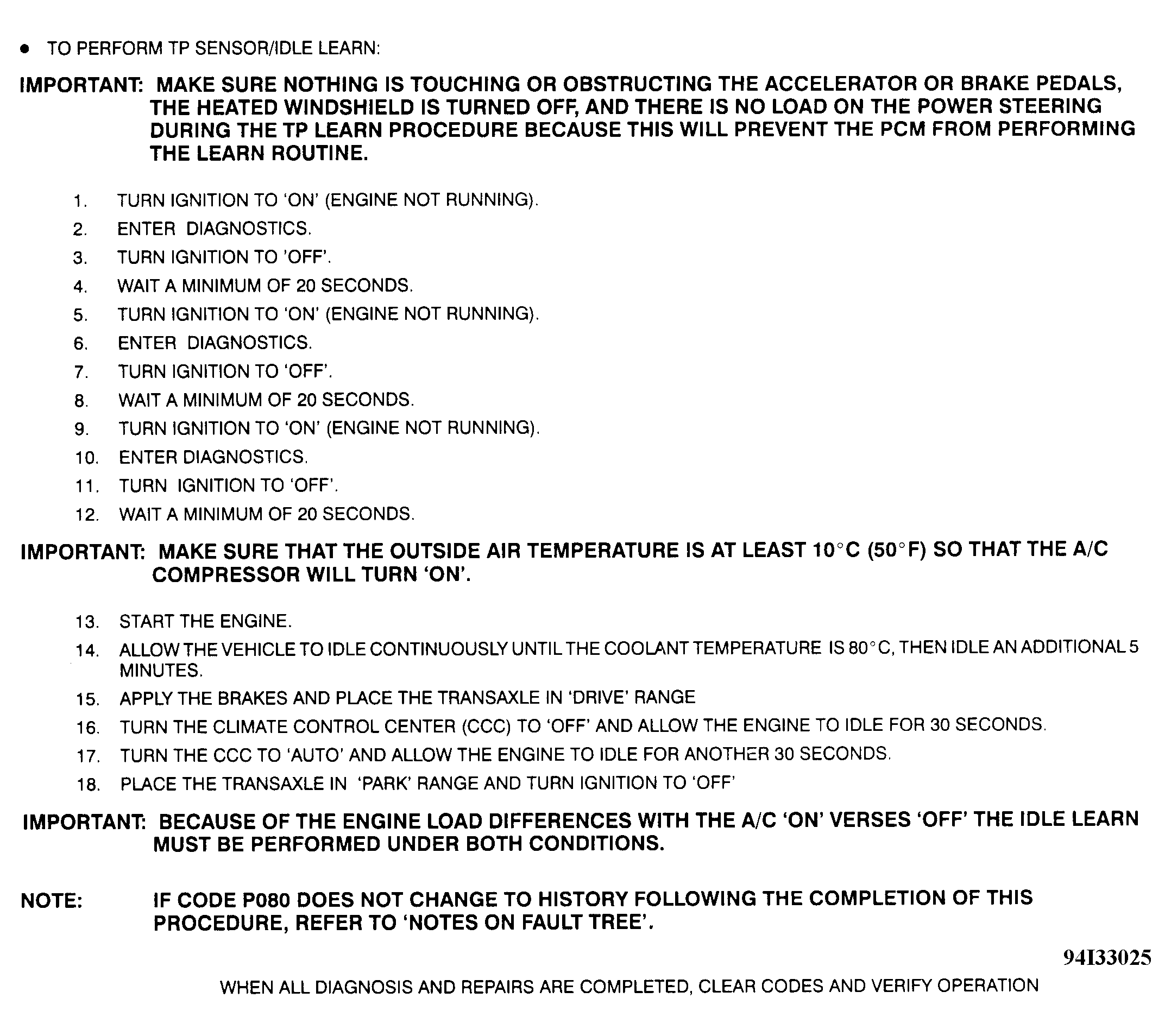

Fig 2: Code P080 Diag. Flow Chart, TP Sensor/Idle Learn Not Complete
G94I33025Courtesy of GENERAL MOTORS CORP.
