Notes On Intermittents

Due to complexity of the 4T80-E transaxle, an intermittent PCM Code P089 will be very difficult to diagnose. Hold off maintenance until specific problem is identified.

Fig 1: Code P089 Schematic, Long Shift And Maximum Adapt

Courtesy of GENERAL MOTORS CORP.

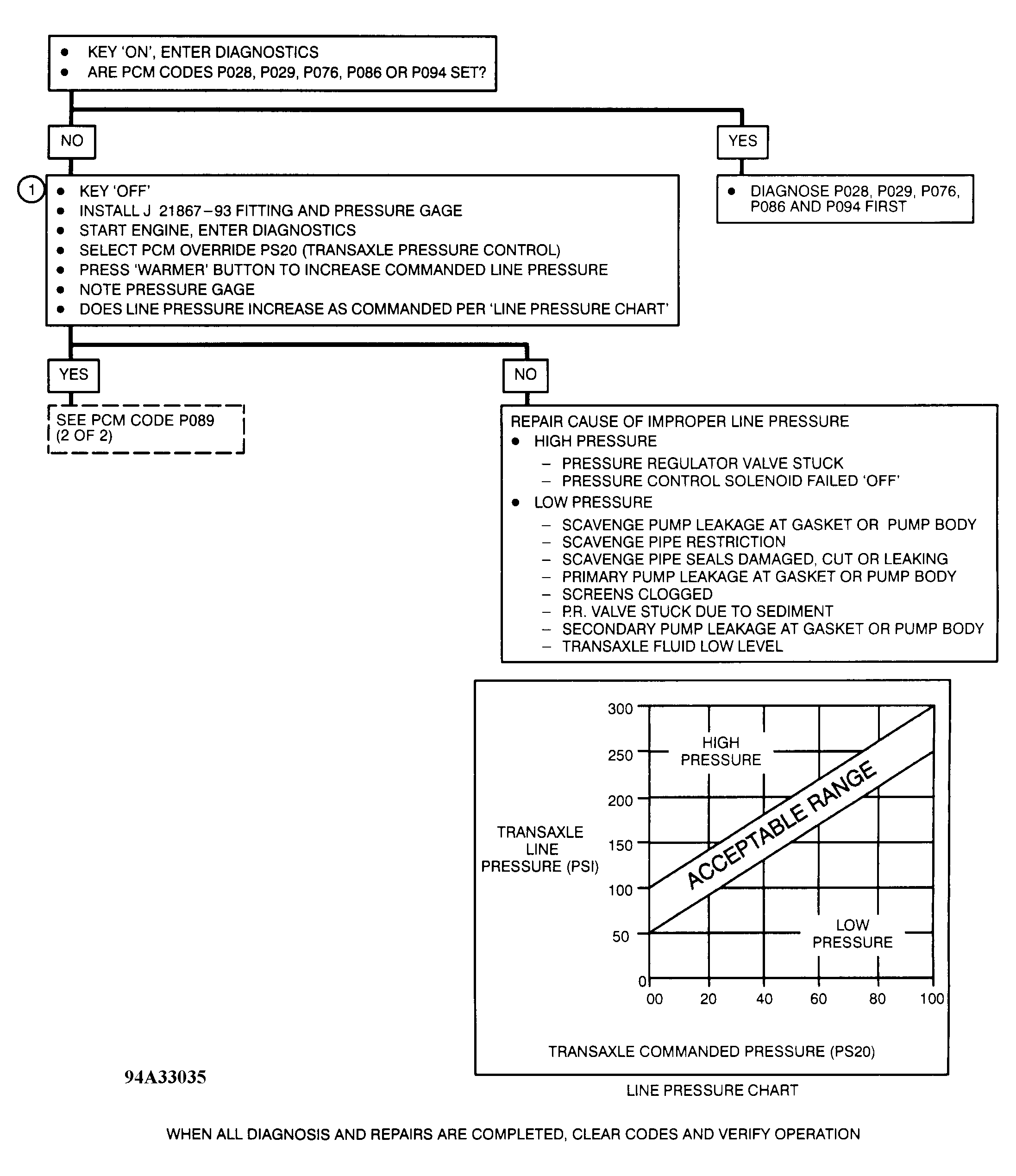

Fig 2: Code P089 Diagnostic Flow Chart - 1 Of 2, Long Shift And Maximum Adapt

Courtesy of GENERAL MOTORS CORP.

Fig 3: Code P089 Diagnostic Flow Chart - 2 Of 2, Long Shift And Maximum Adapt

Courtesy of GENERAL MOTORS CORP.
