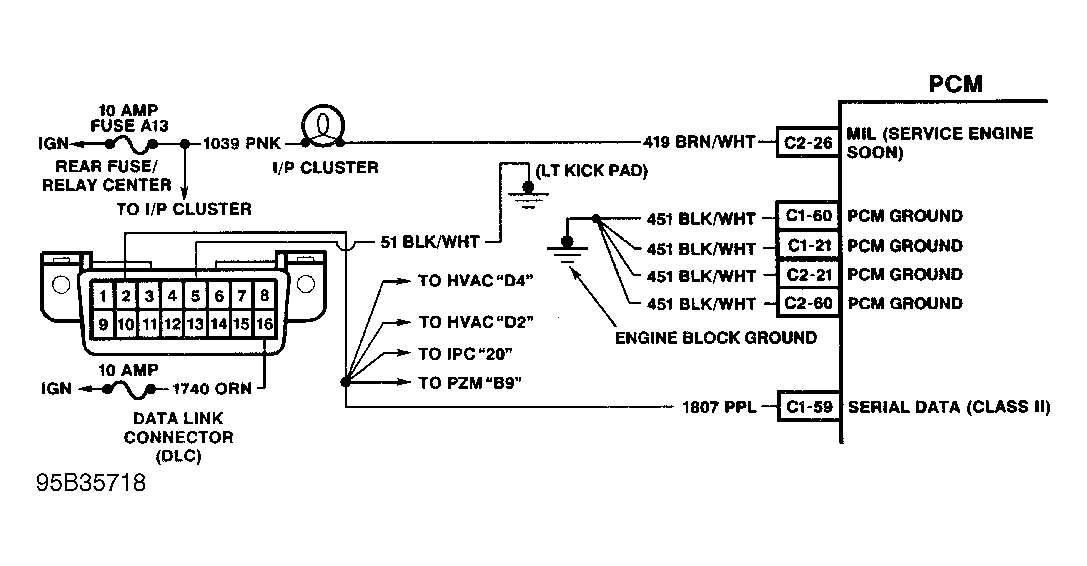

The OBD System Check Determines:
- If Malfunction Indicator Light (MIL) works.
- If PCM is operating and can recognize a fault.
- If any codes are stored.
After performing procedures in PRELIMINARY INSPECTION & ADJUSTMENTS, BASIC FUEL SYSTEM CHECKS and BASIC IGNITION SYSTEM CHECKS, this is the starting point for utilizing the self-diagnostic system for determining computer-related problems. After performing necessary tests as described in the diagnostic circuit check, if no codes are indicated and driveability problems still exist, see TESTS W/O CODES article and SCAN TESTER USAGE in TESTS W/CODES article.
- Turn ignition on with engine off. Wait about 5 seconds. Observe Malfunction Indicator Light (MIL). If MIL illuminates, go to next step. If MIL does not illuminate, diagnose problem using DTC P1641. See TESTS W/CODES article.
- Turn ignition off. Install Tech 1 scan tool and follow scan tool manufacturer's instructions to proceed with test. Turn ignition on. If scan tool displays PCM data, go to next step. If scan tool does not display PCM data, go to A-2/A-4, DLC DIAGNOSIS OR NO SCAN TOOL DATA.
- Using scan tool in MISC TESTS function, select MIL OUTPUT TEST. Command MIL to turn off, using scan tool. If MIL turns off when commanded, go to next step. If MIL does not turn off when commanded, diagnose problem using DTC P1641. See TESTS W/CODES article.
- Attempt to start engine. If engine start and runs, go to next step. If engine does not start or starts and dies, go to NO START DIAGNOSIS (A-3) .
- Using scan tool, observe DTC statuses; MIL REQUEST, FAIL THIS IGN, LAST TST FAIL and HISTORY. If any of these DTC status are present, refer to affected DTC to diagnose problem. If DTC(s) are not present, check related circuit or component(s). See SYSTEM/COMPONENT TESTS article.
