Electronic Brake/Traction Control Module Connector C1

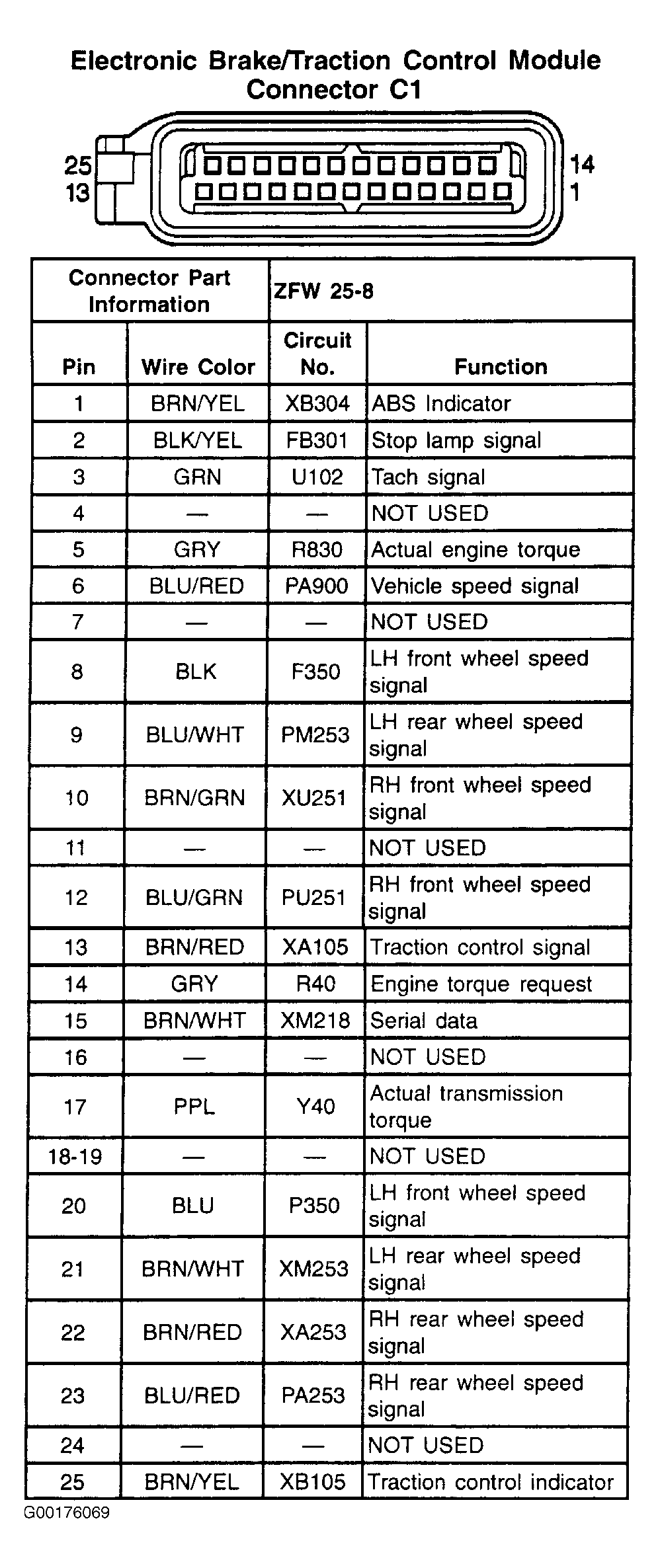

Fig 1: Electronic Brake/Traction Control Module Connector C1 - 25-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
