Electronic Brake/Traction Control Module Connector C2

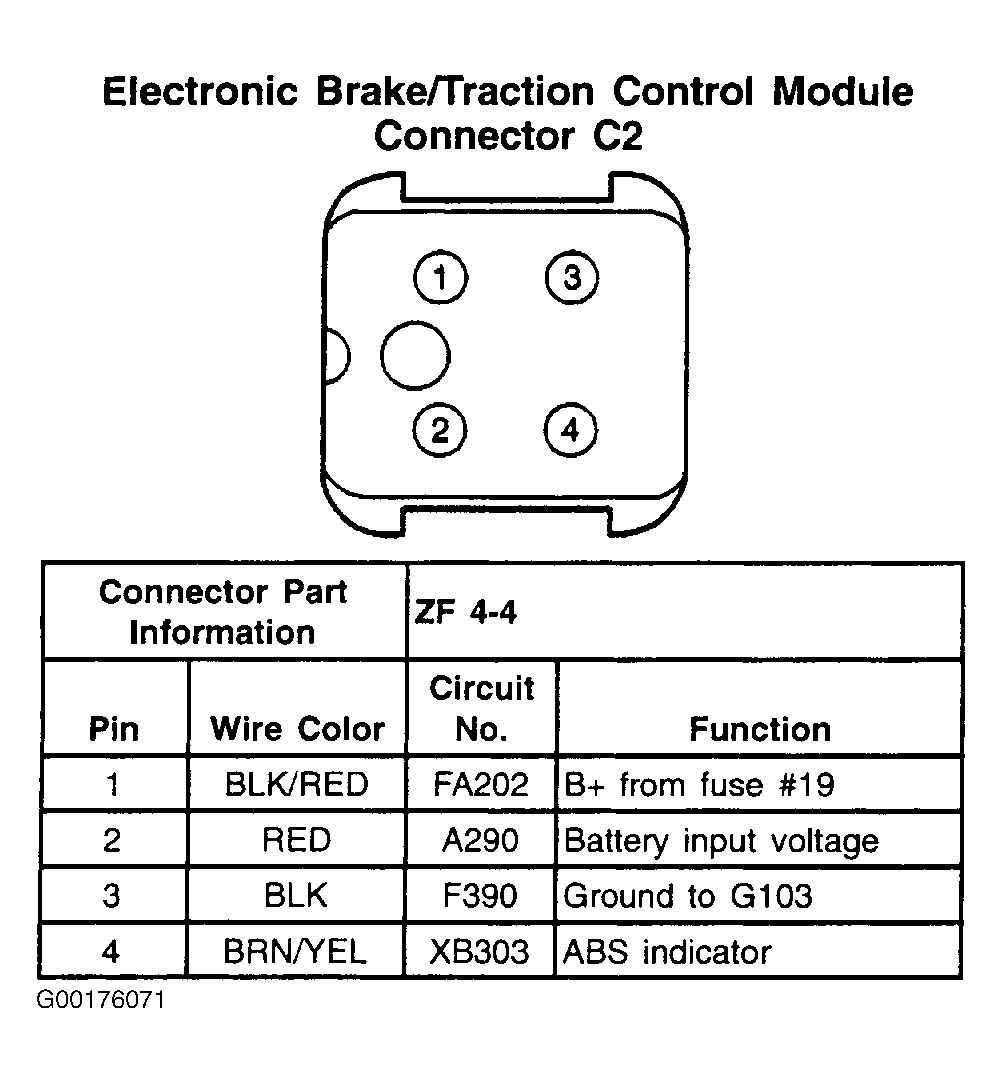

Fig 1: Electronic Brake/Traction Control Module Connector C2 - 4-Pin Connector
G00176071Courtesy of GENERAL MOTORS CORP.
