Electronic Traction Control Switch

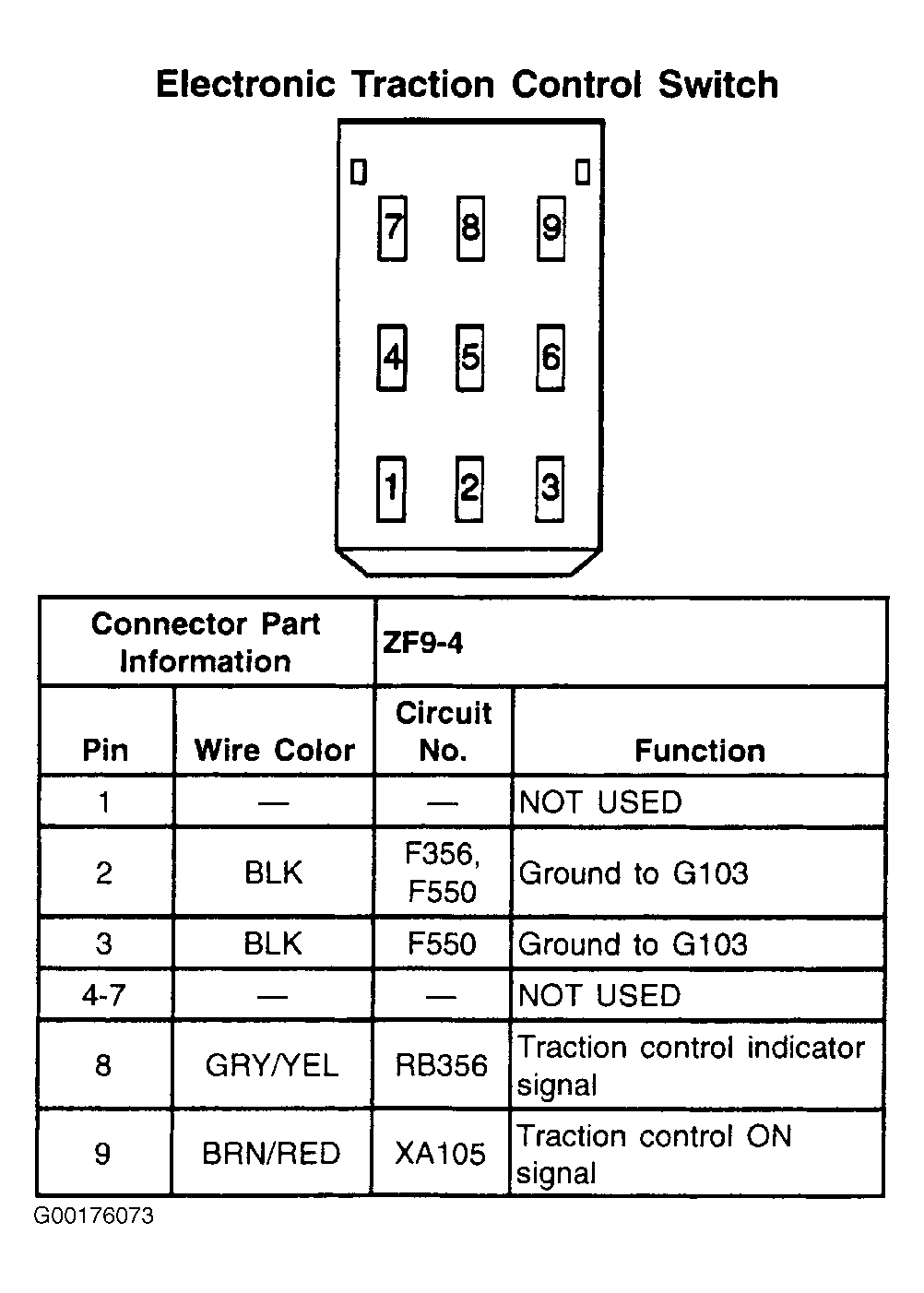

Fig 1: Electronic Traction Control Switch - 9-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
