Right Hand Front Wheel Speed Sensor

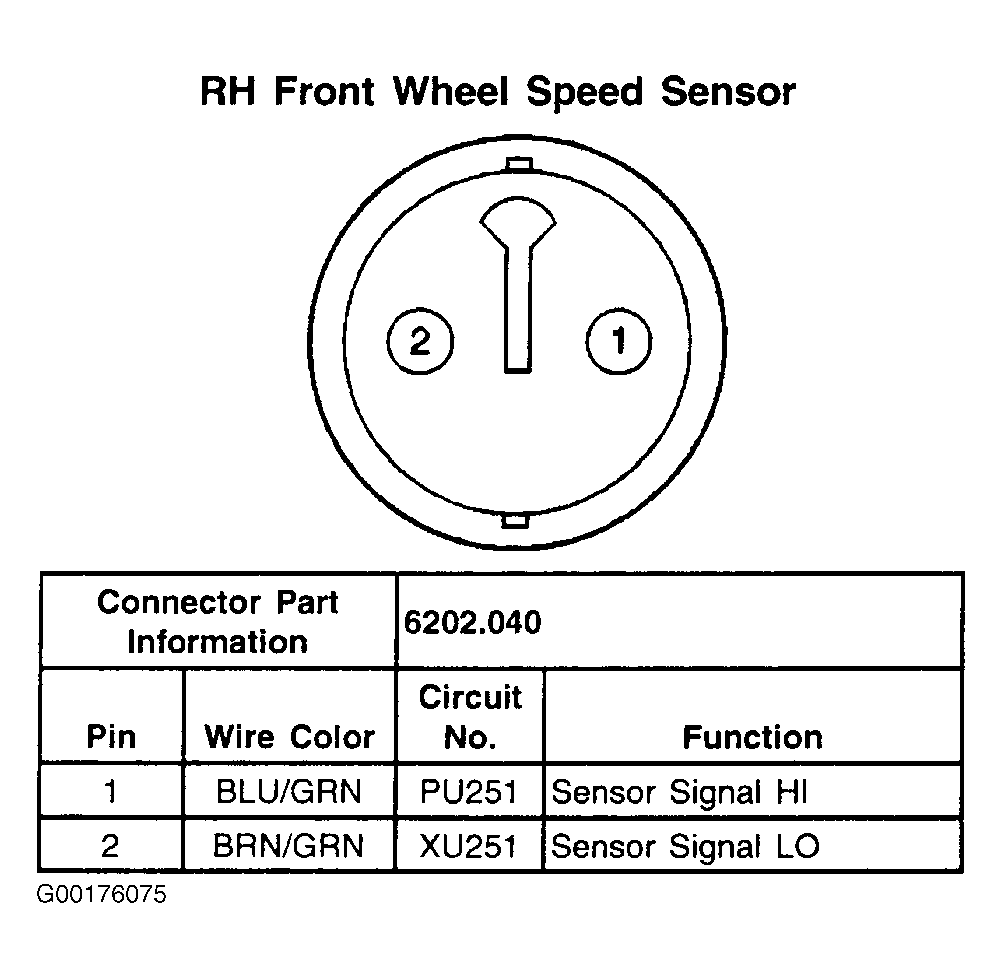

Fig 1: Right Hand Front Wheel Speed Sensor - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
