Automatic Transmission Control Indicator

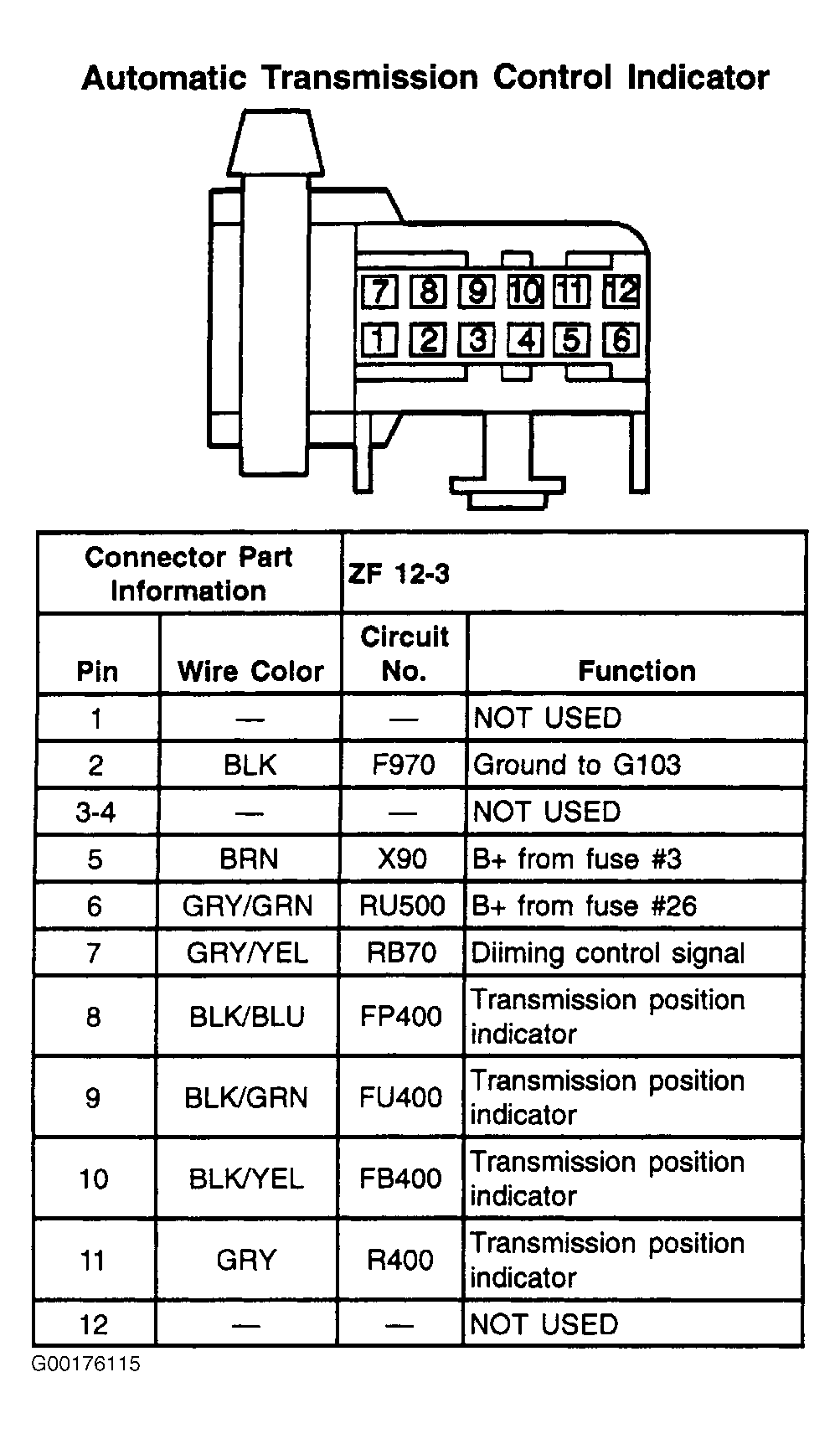

Fig 1: Automatic Transmission Control Indicator - 12-Pin Connector
G00176115Courtesy of GENERAL MOTORS CORP.
