STOPLAMP Switch

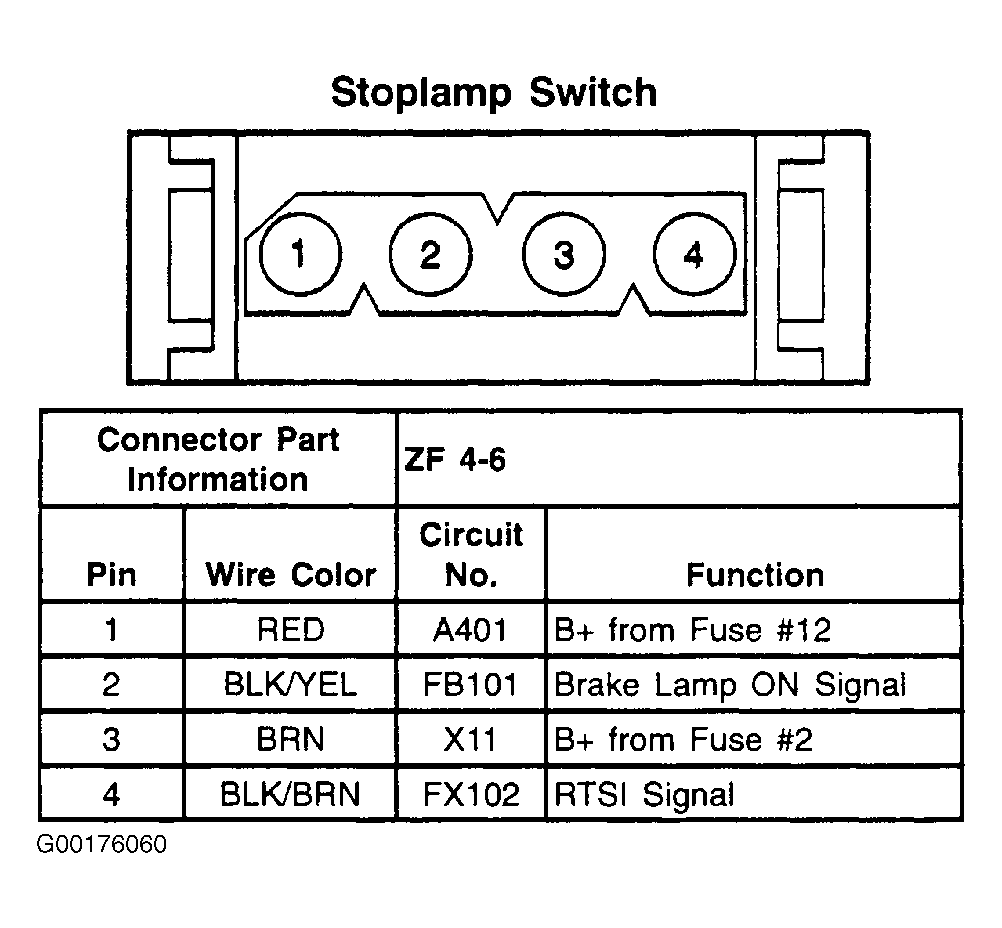

Fig 1: Stoplamp Switch - 4-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
