Door Lock Switch

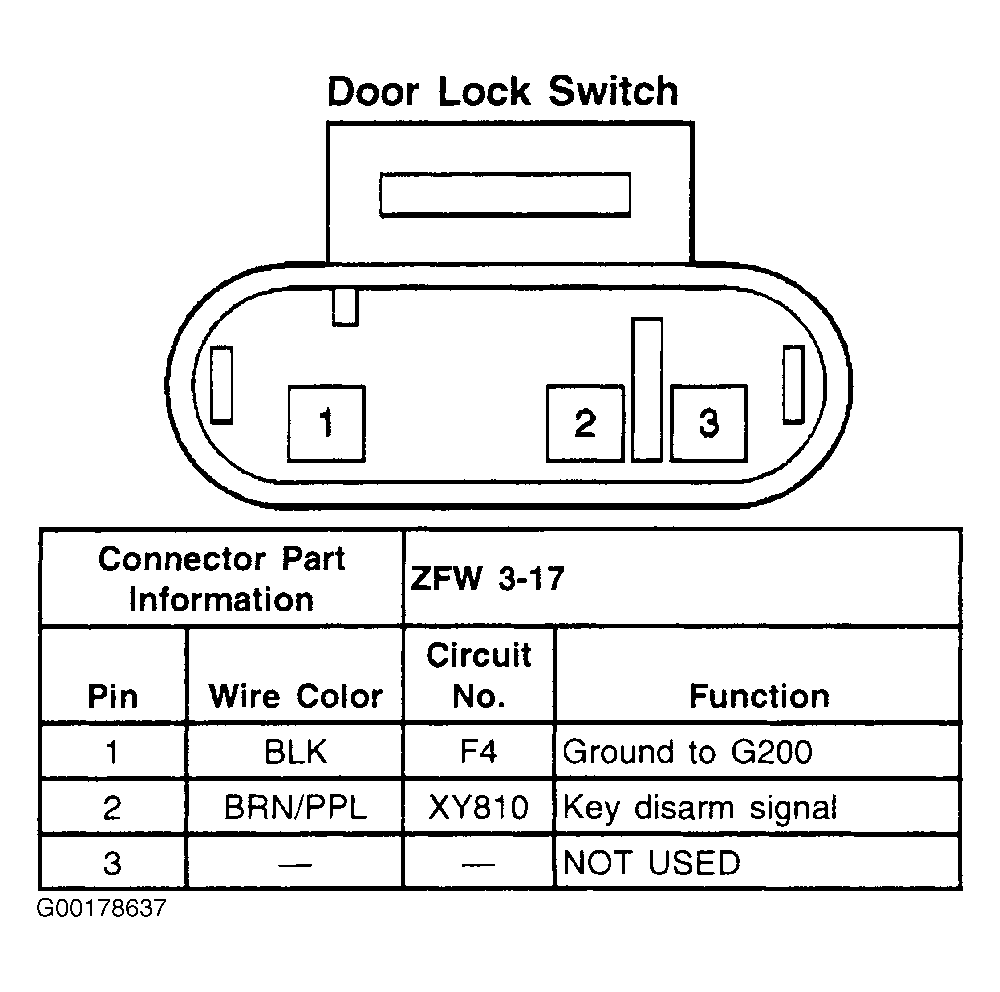

Fig 1: Door Lock Switch - 3-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
