Brake Fluid Minimum Capacity Sensor

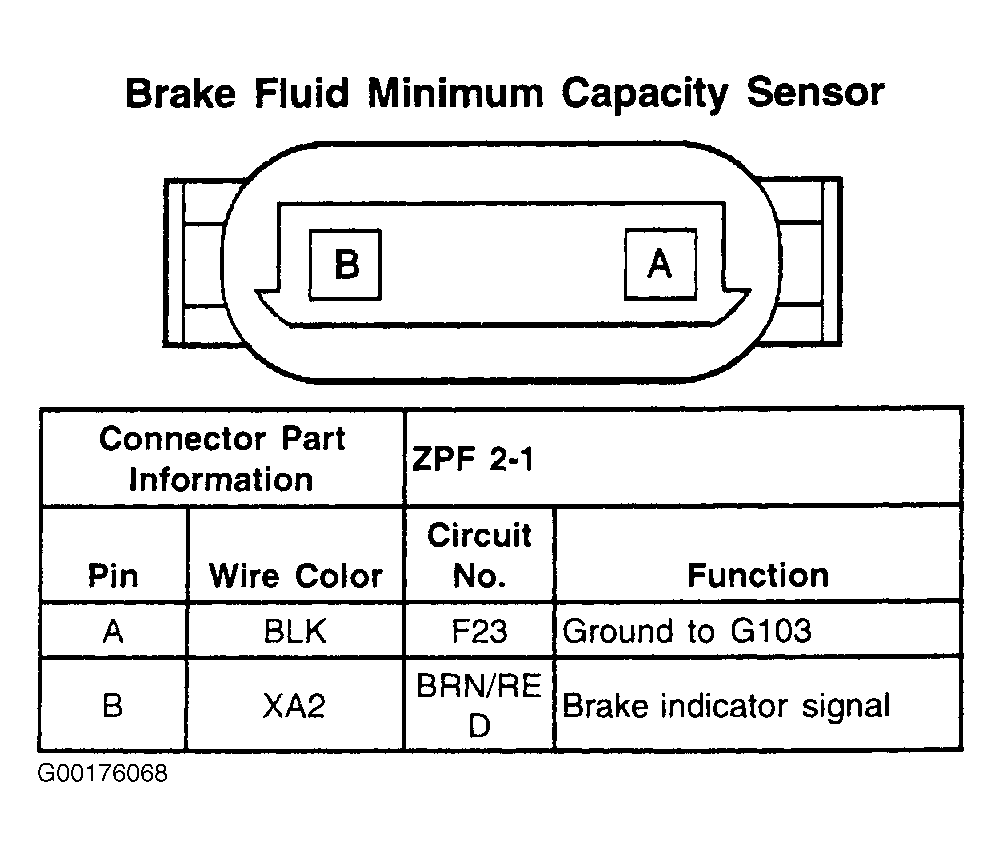

Fig 1: Brake Fluid Minimum Capacity Sensor - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
