Cellular Telephone (Base System)

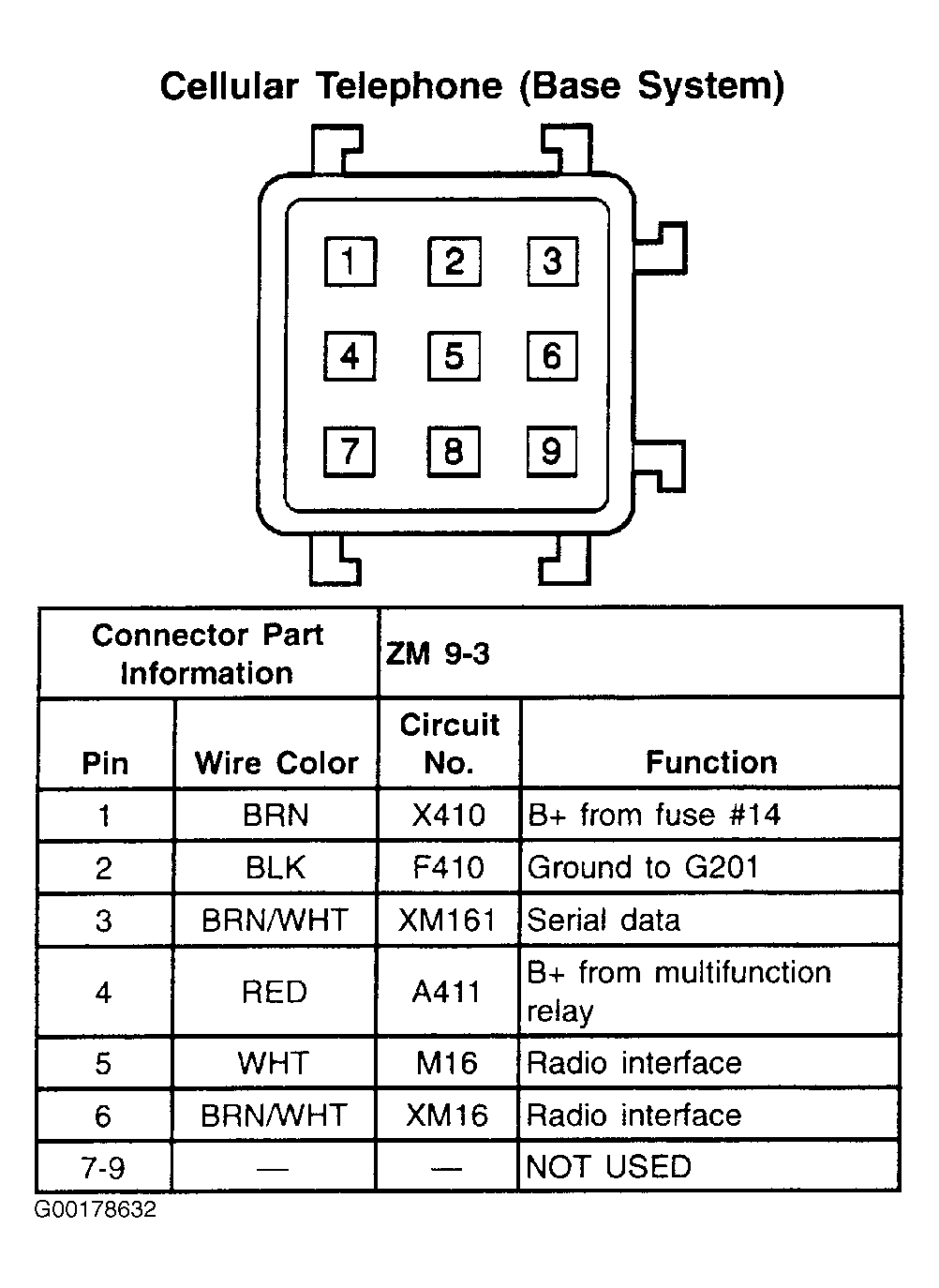

Fig 1: Cellular Telephone (Base System) - 9-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
