Camshaft Position (CMP) Sensor

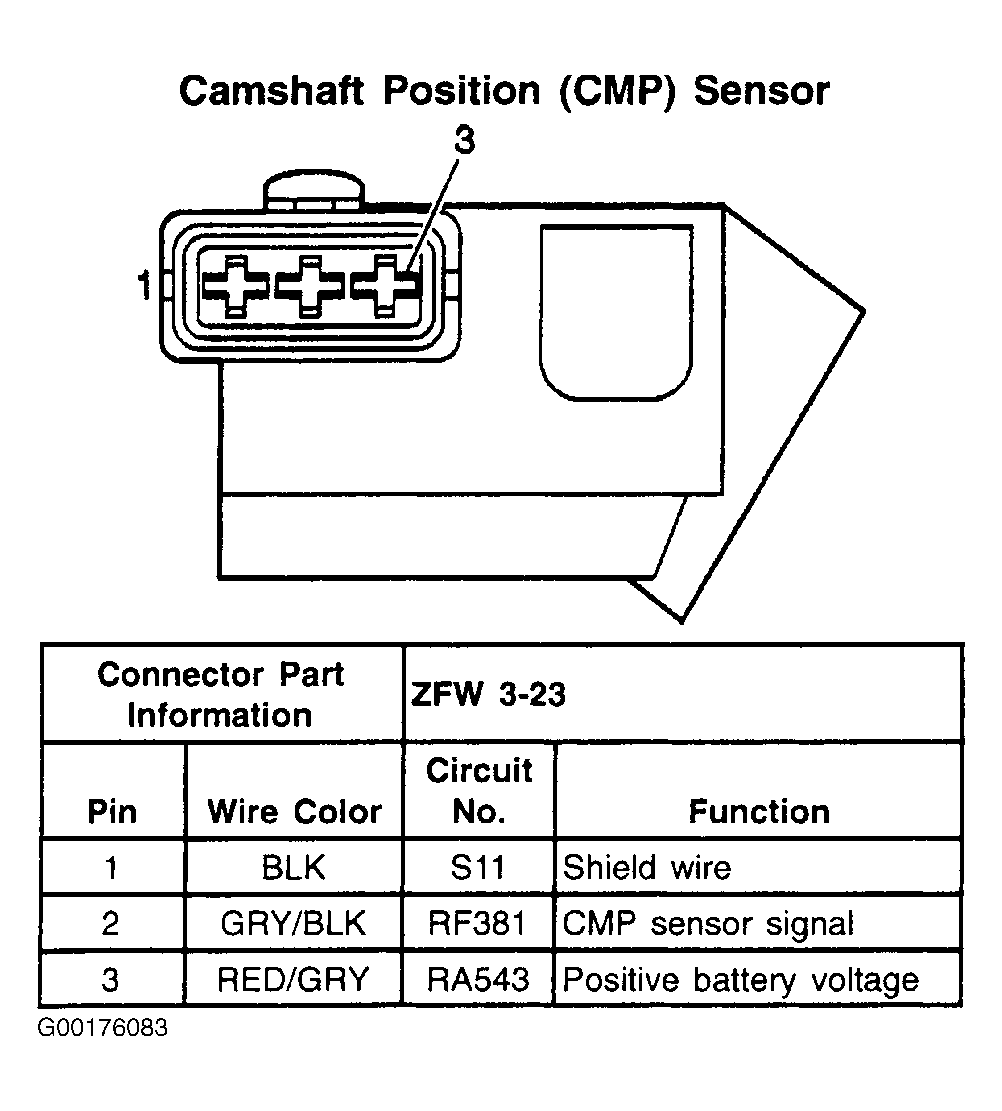

Fig 1: Camshaft Position (CMP) Sensor - 3-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
