Fuel Injector No. 3

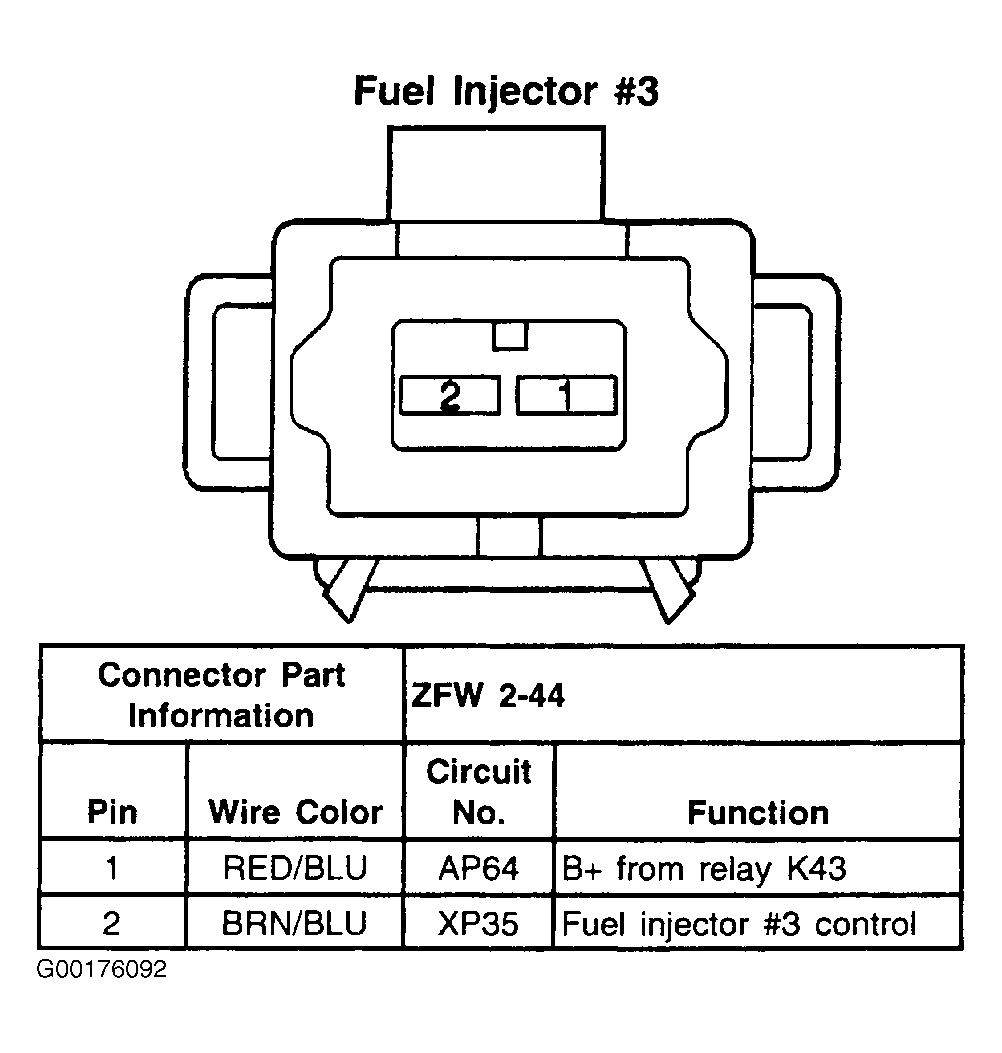

Fig 1: Fuel Injector No. 3 - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
