Secondary Air Injection Pump

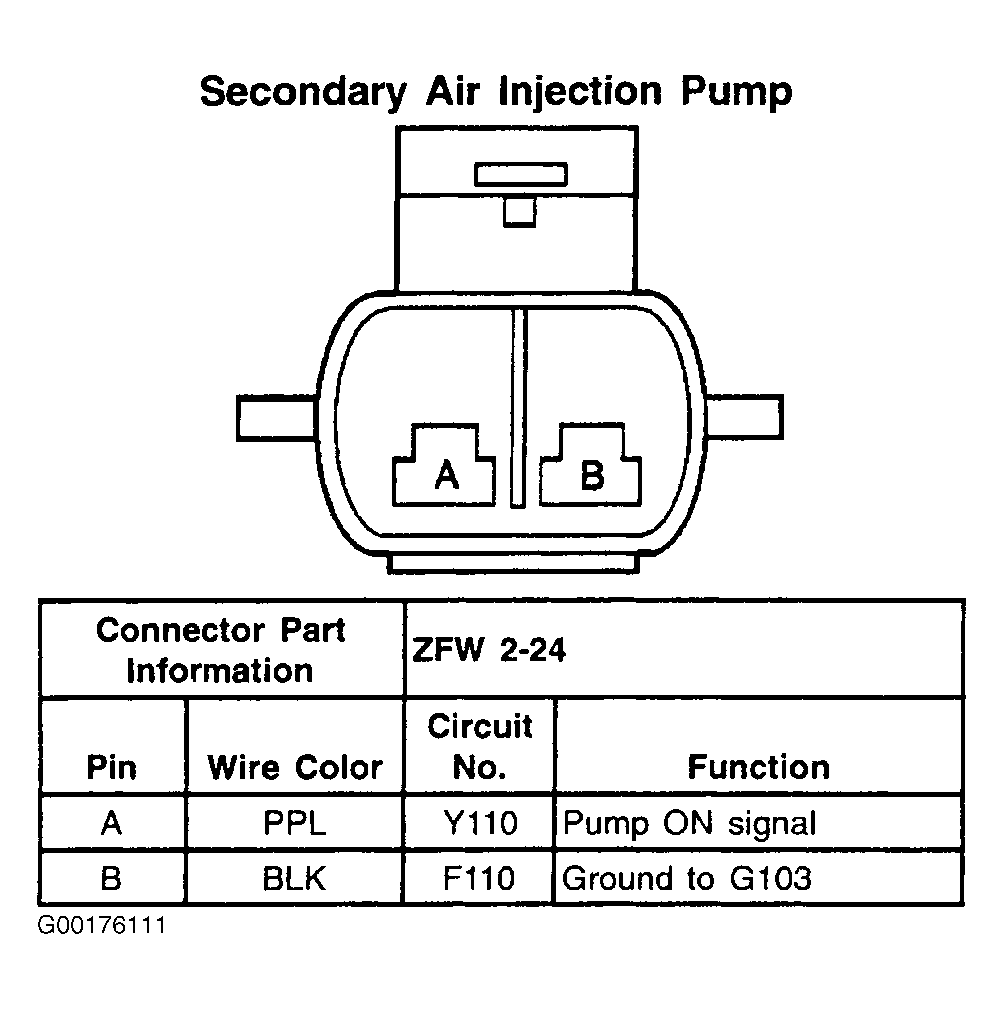

Fig 1: Secondary Air Injection Pump - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
