Horn Relay K63

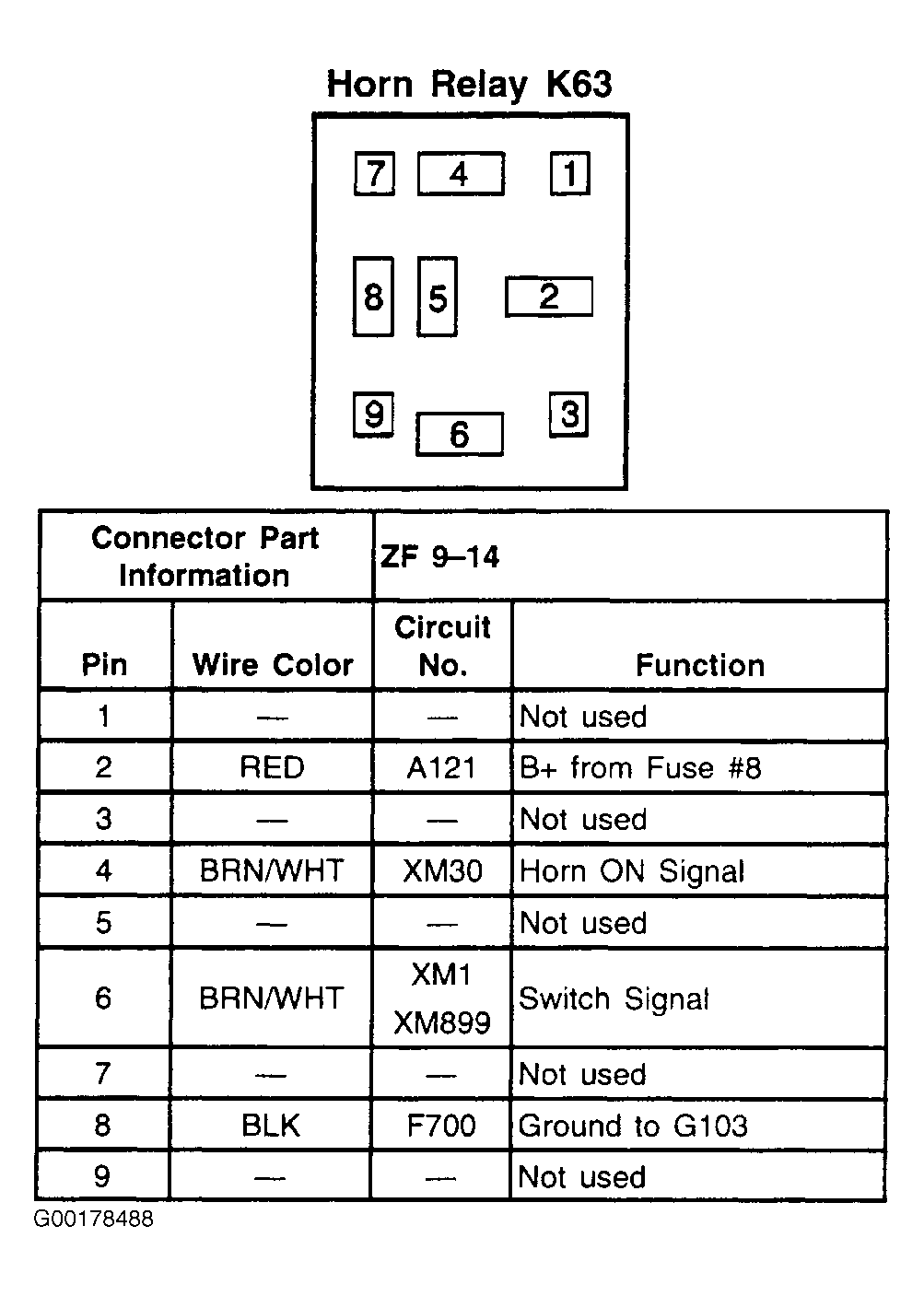

Fig 1: Horn Relay K63 - 9-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
