Automatic Transmission Range Switch

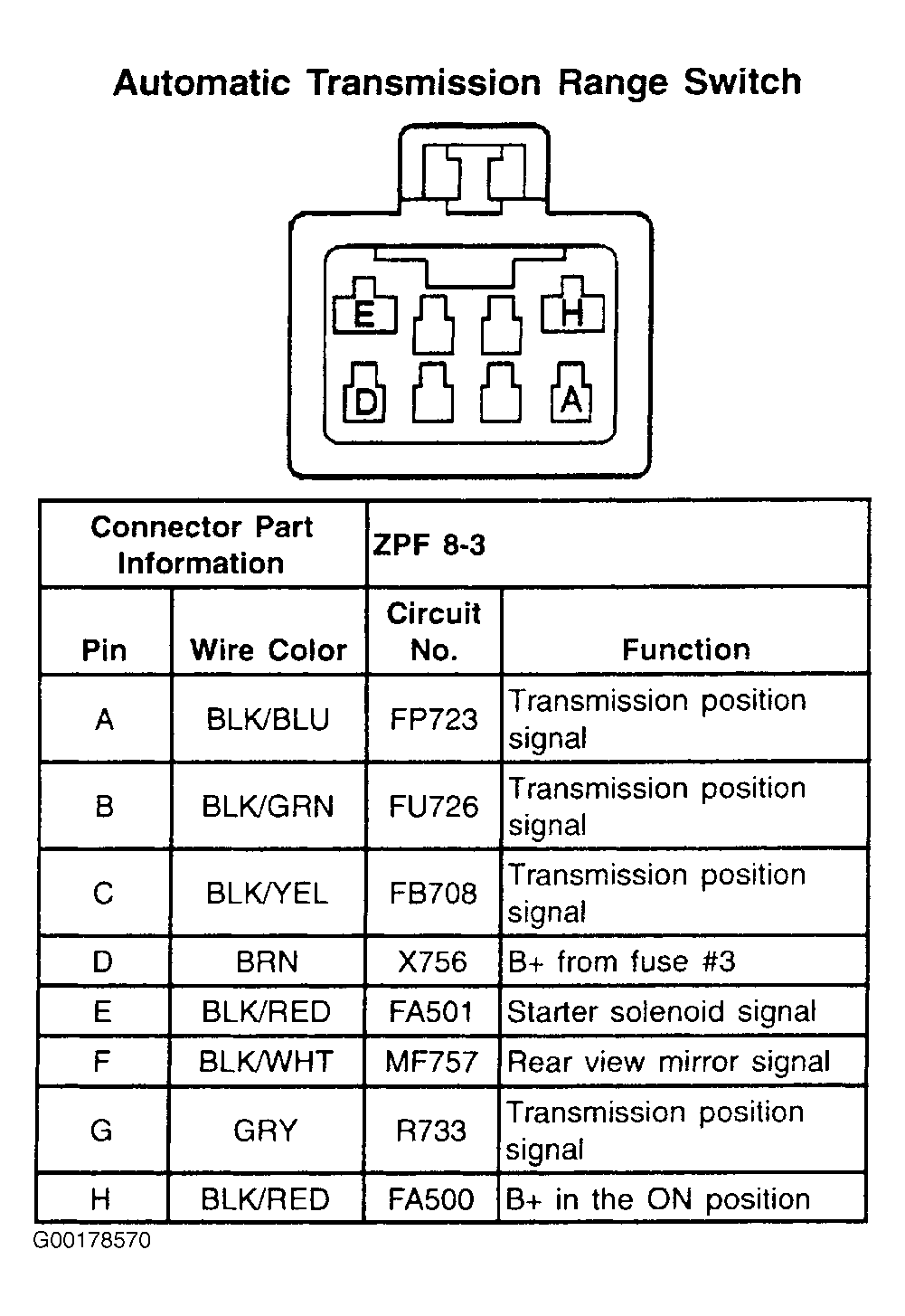

Fig 1: Automatic Transmission Range Switch - 8-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
