Hazard Warning Switch

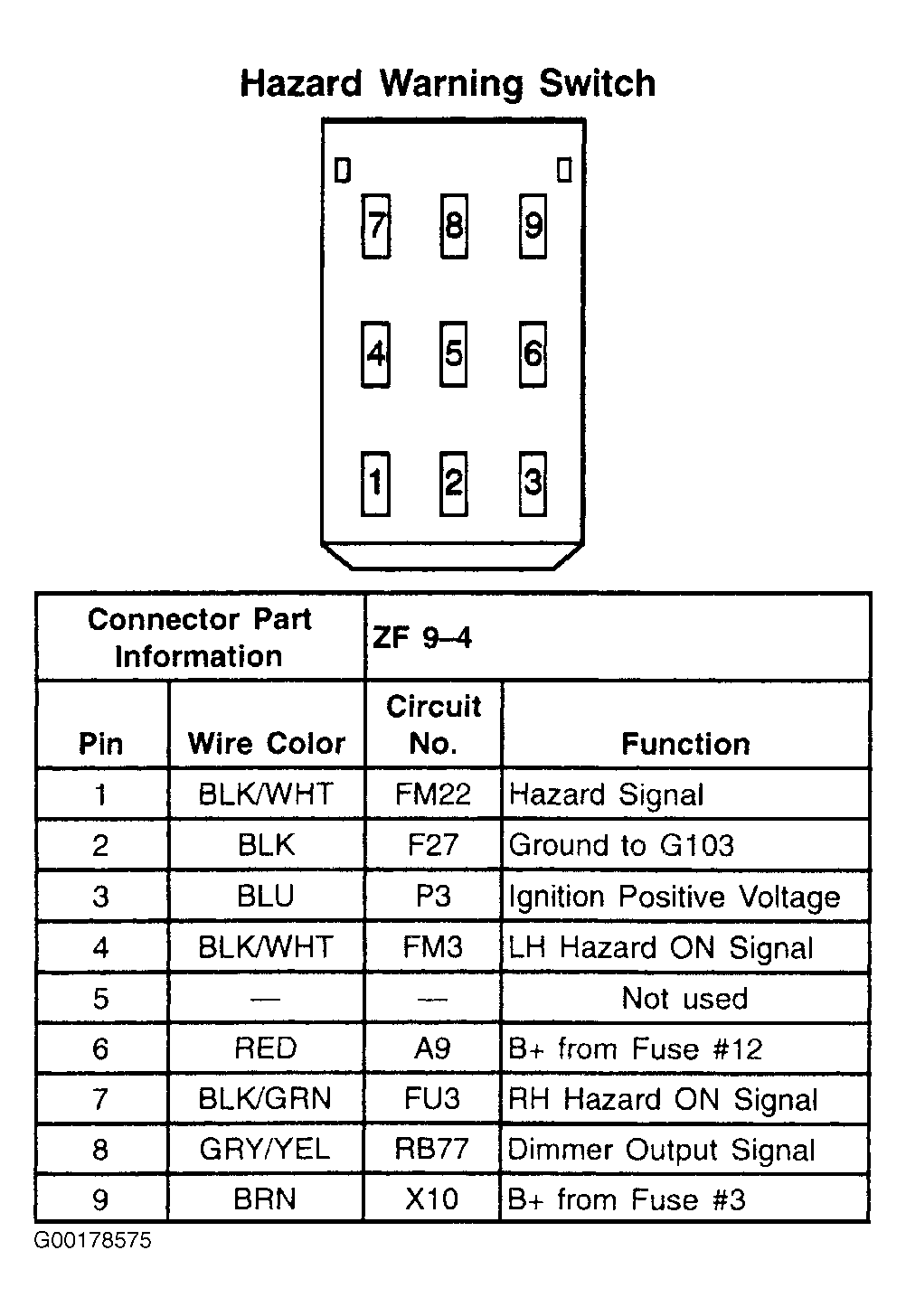

Fig 1: Hazard Warning Switch - 9-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
