Headlamp Automatic Control Ambient Light Sensor

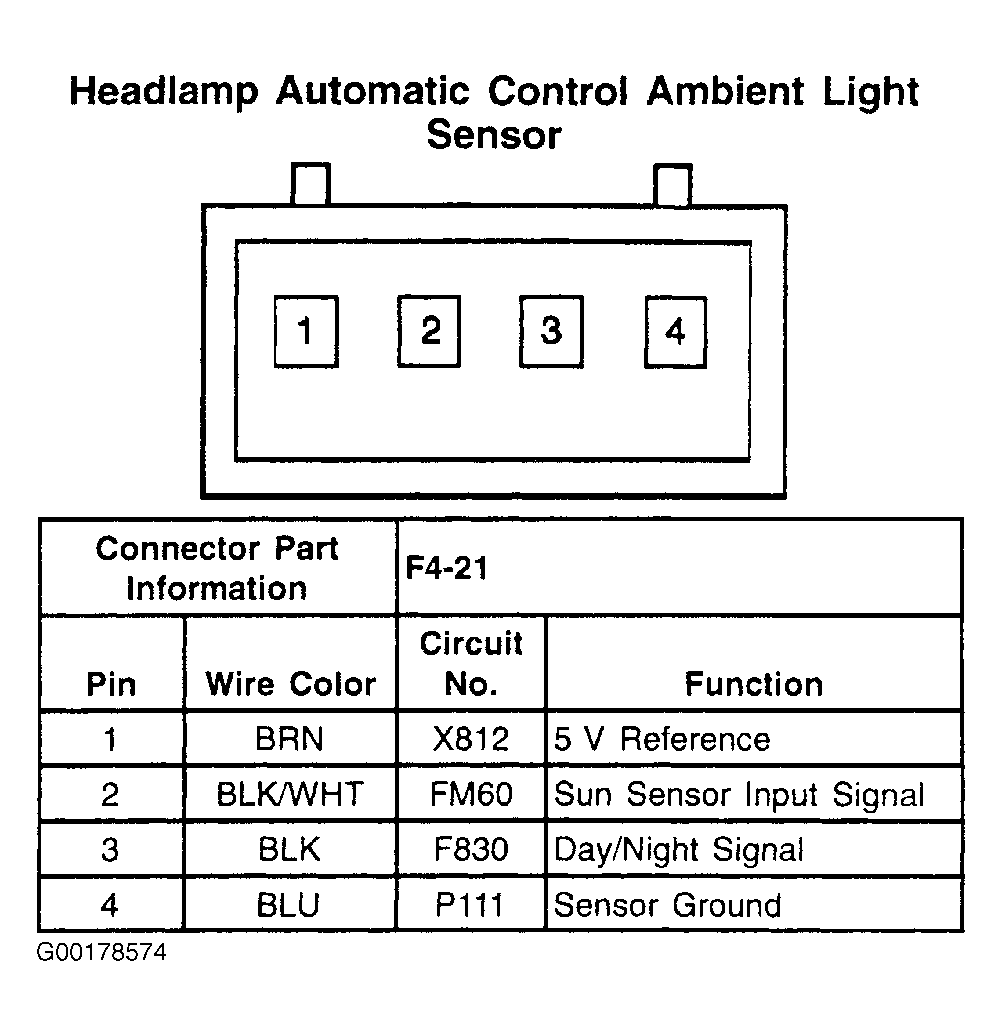

Fig 1: Headlamp Automatic Control Ambient Light Sensor - 4-Pin Connector
G00178574Courtesy of GENERAL MOTORS CORP.
