Headlamp Switch

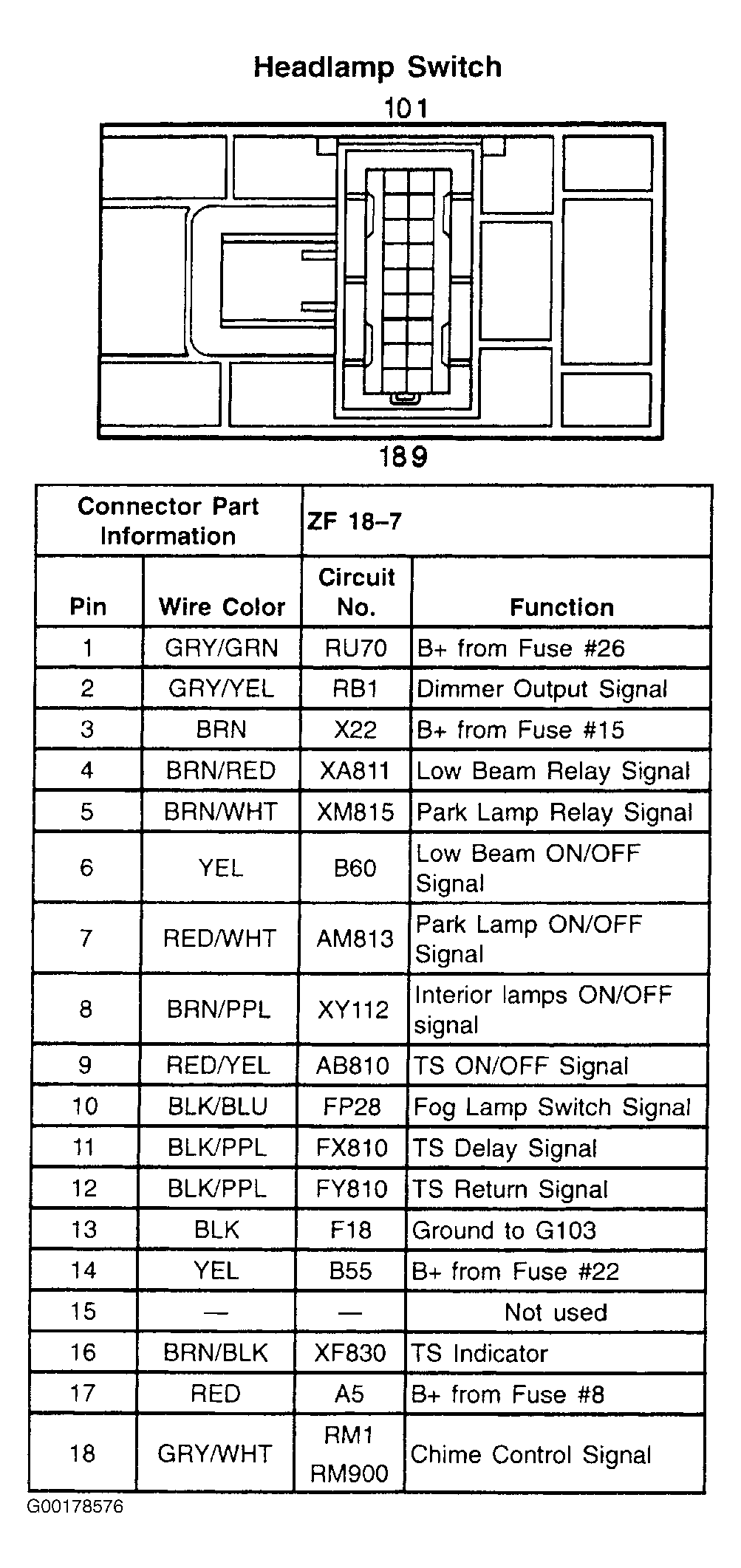

Fig 1: Headlamp Switch - 18-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
