I/P Compartment Lamp Switch

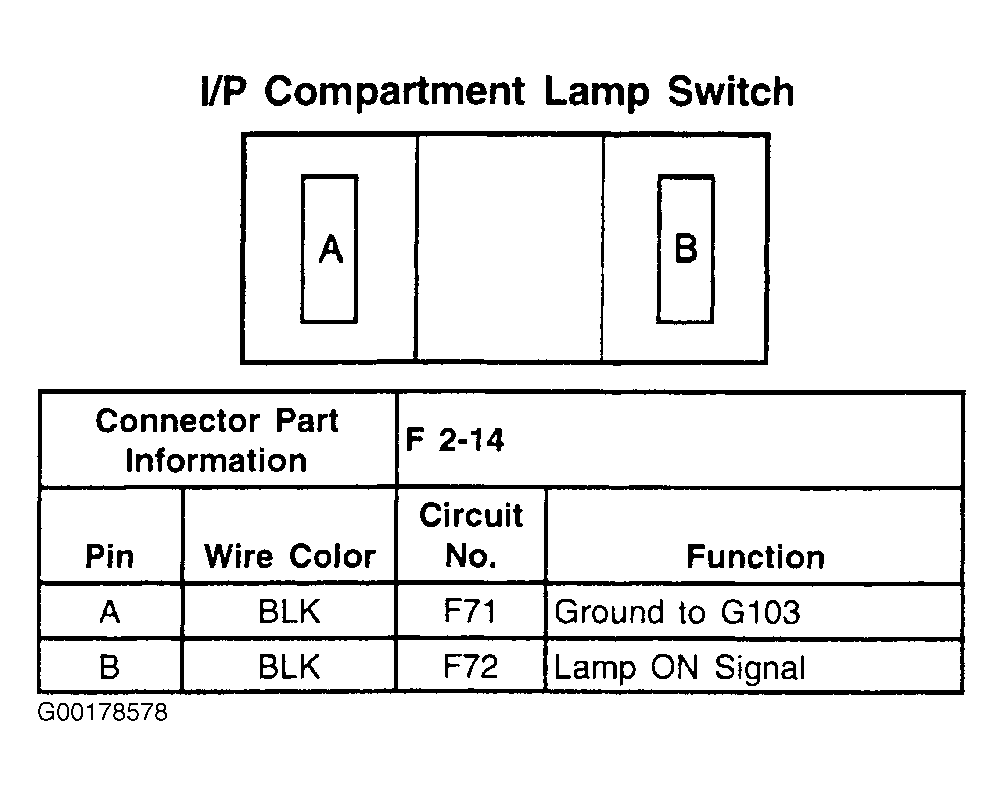

Fig 1: I/P Compartment Lamp Switch - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
