Stop Lamp Switch

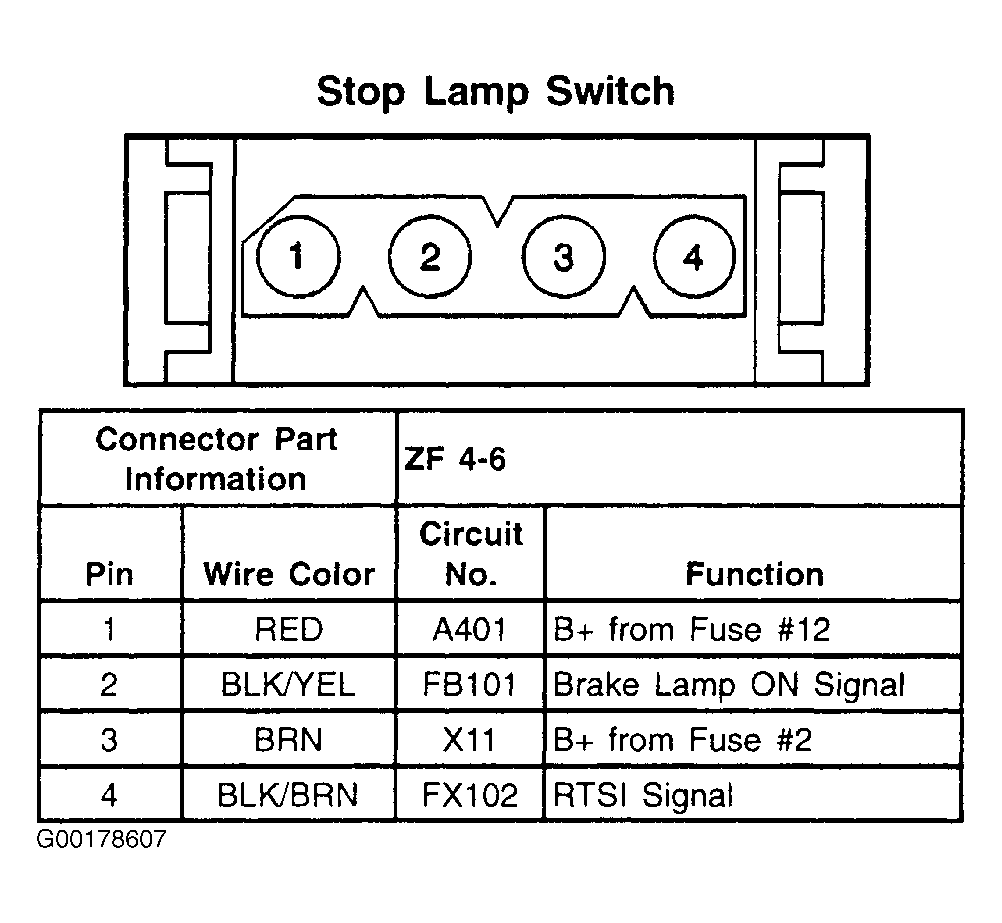

Fig 1: Stop Lamp Switch - 4-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
