Power Steering Control Module

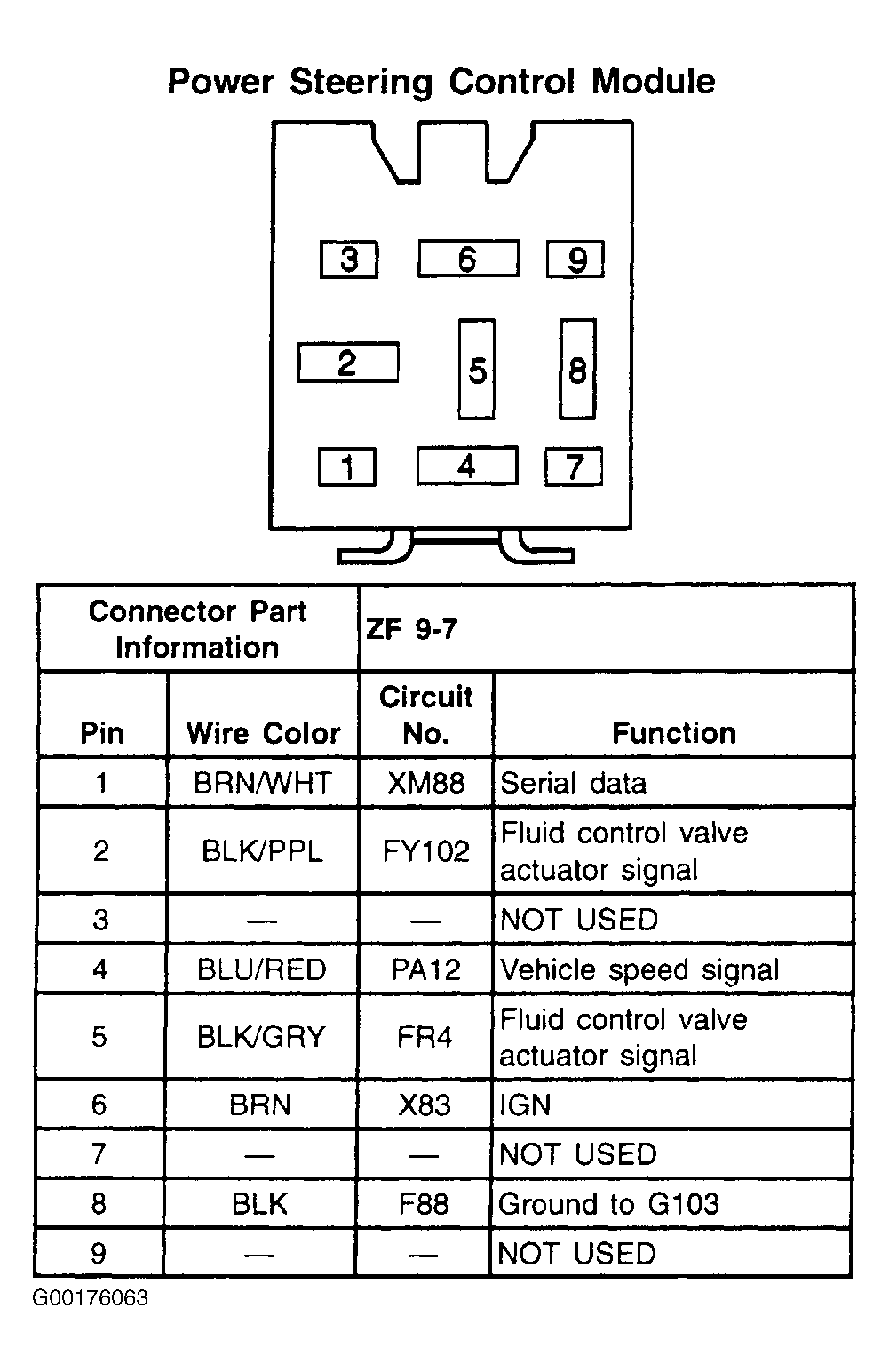

Fig 1: Power Steering Control Module - 9-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
