Power Steering Fluid Flow Control Valve Actuator

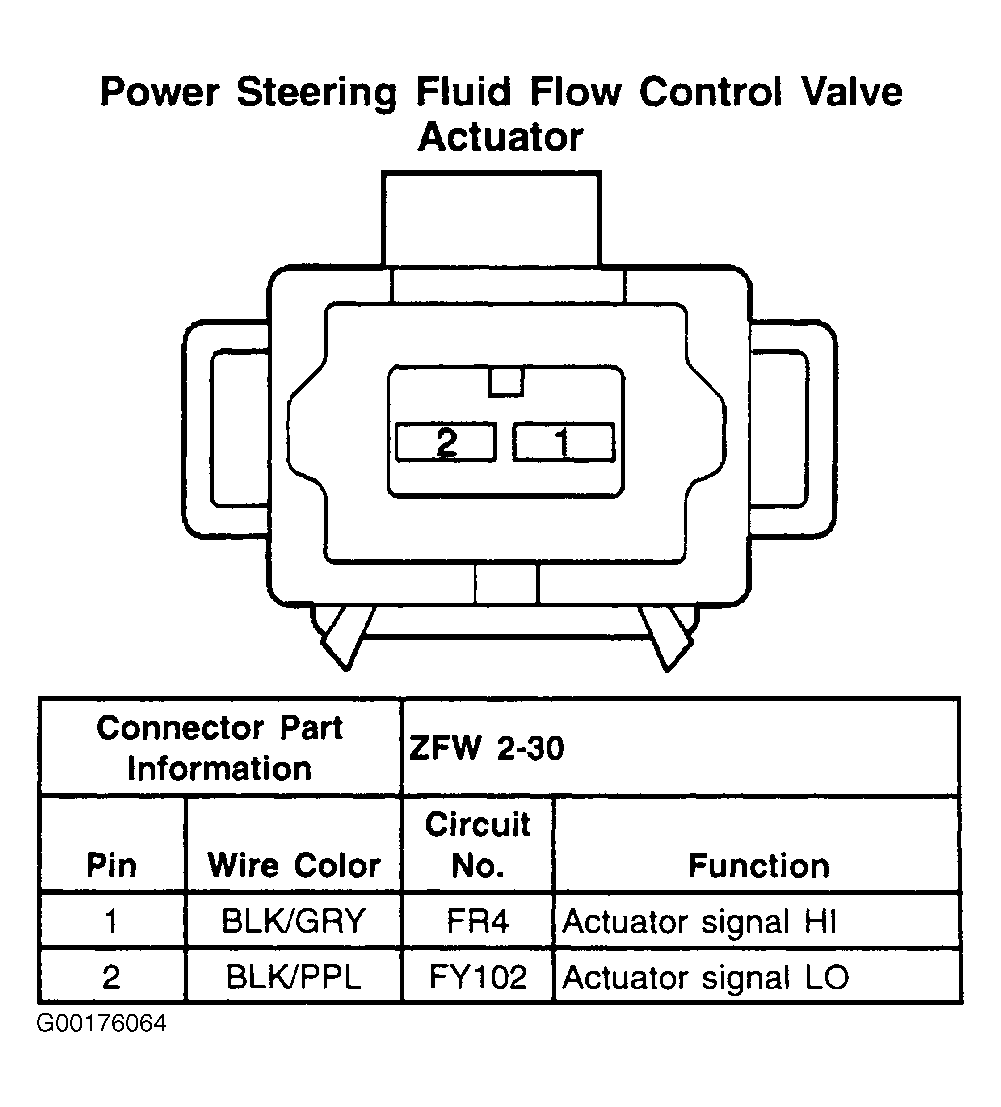

Fig 1: Power Steering Fluid Flow Control Valve Actuator - 2-Pin Connector
G00176064Courtesy of GENERAL MOTORS CORP.
