Theft Deterrent Module Connector

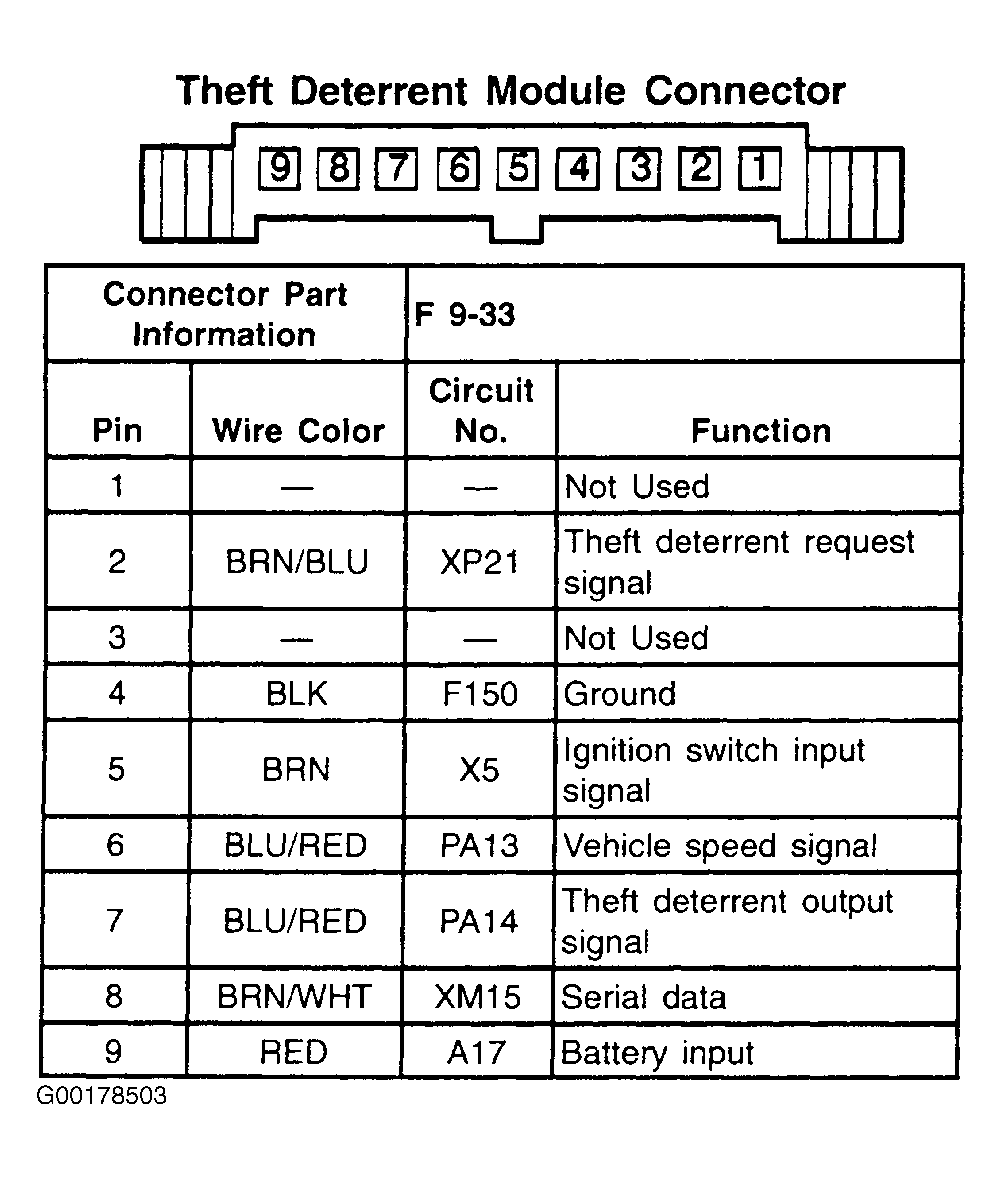

Fig 1: Theft Deterrent Module Connector - 9-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
