Windshield Washer Nozzle (Left Hand)

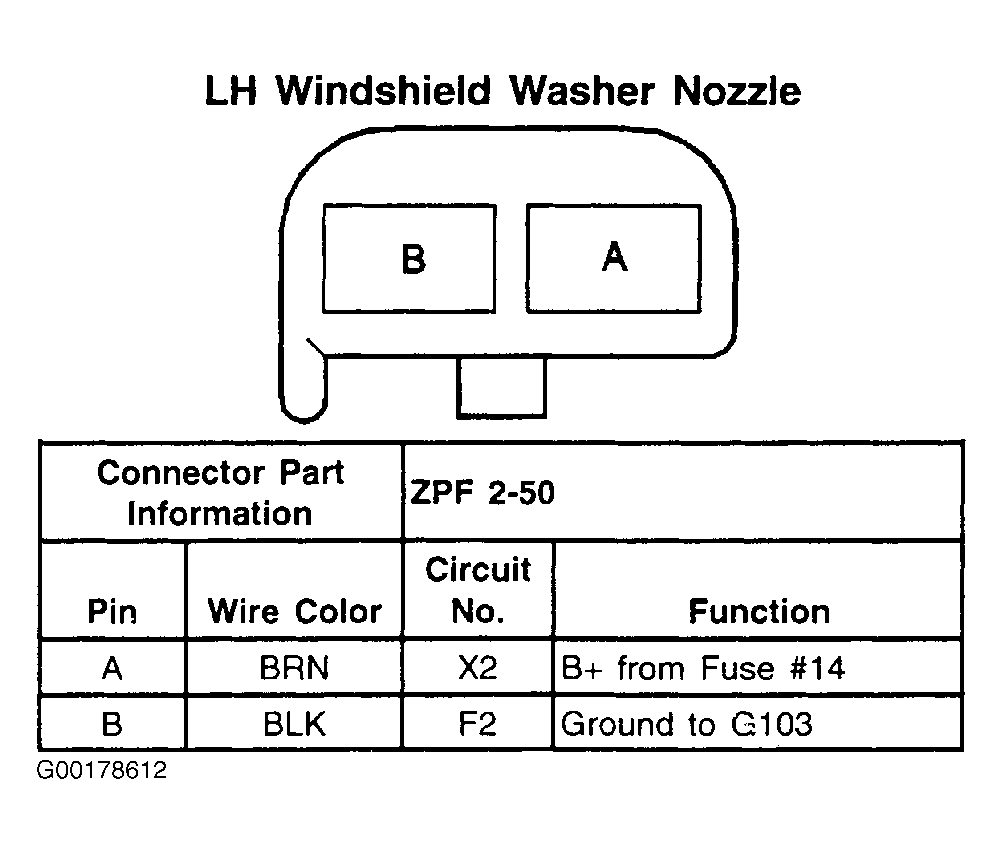

Fig 1: Windshield Washer Nozzle (Left Hand) - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
