Windshield Washer Solvent Level Switch

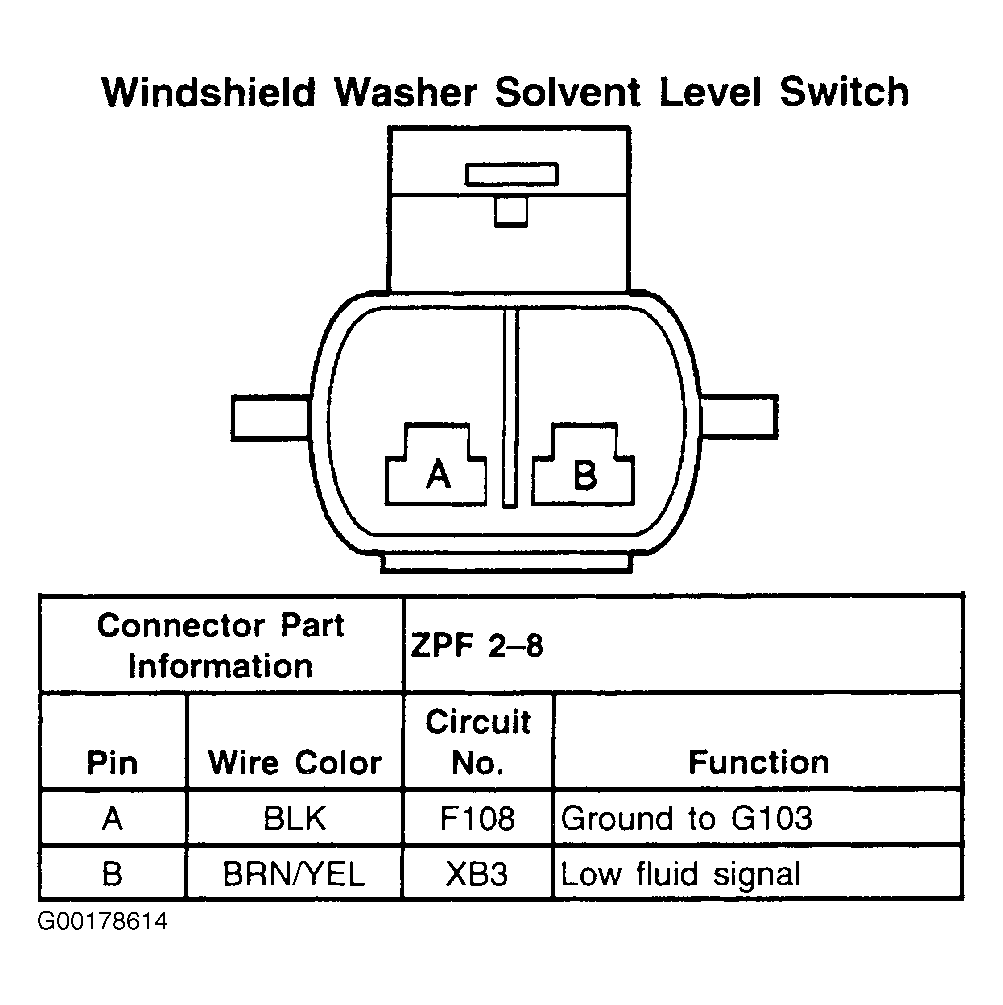

Fig 1: Windshield Washer Solvent Level Switch - 2-Pin Connector
G00178614Courtesy of GENERAL MOTORS CORP.
