Windshield Wiper Motor

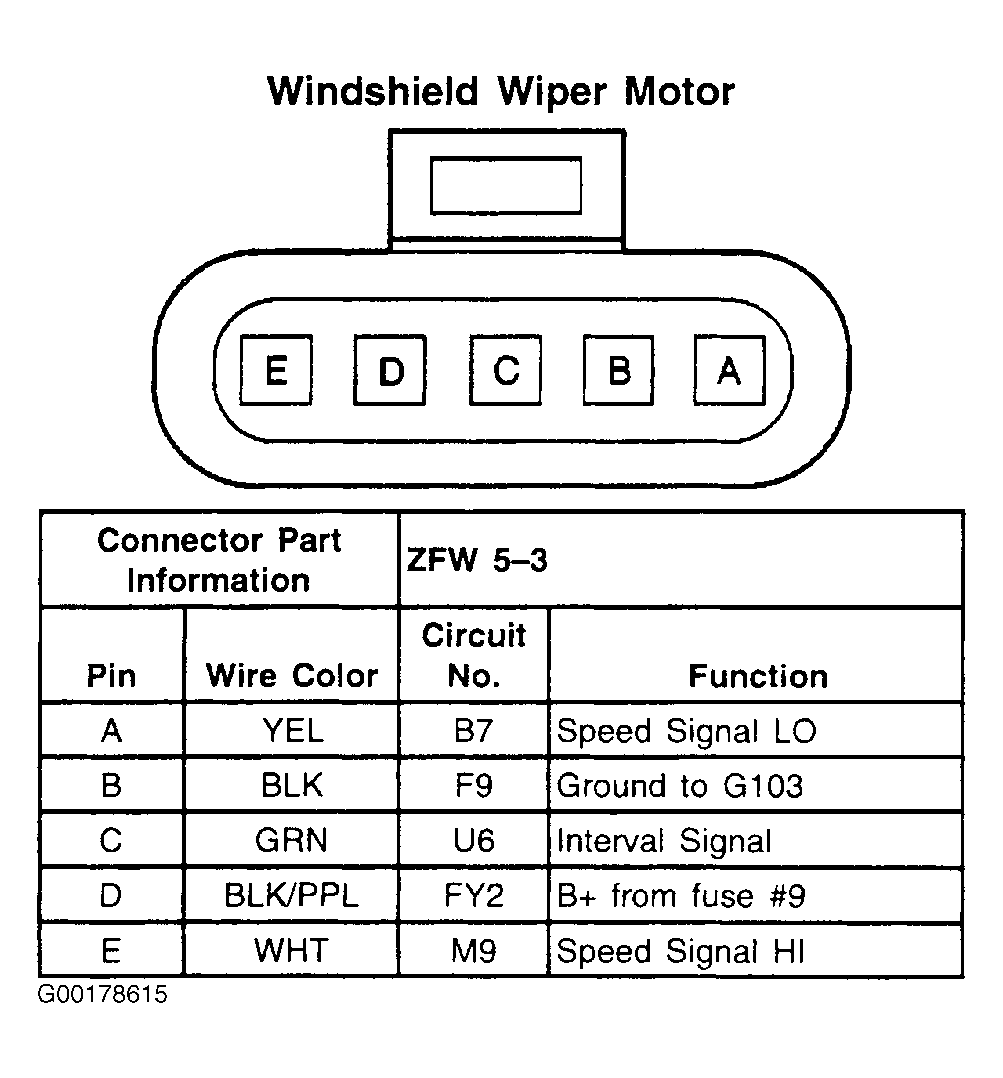

Fig 1: Windshield Wiper Motor - 5-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
