Windshield Wiper Motor Relay K8

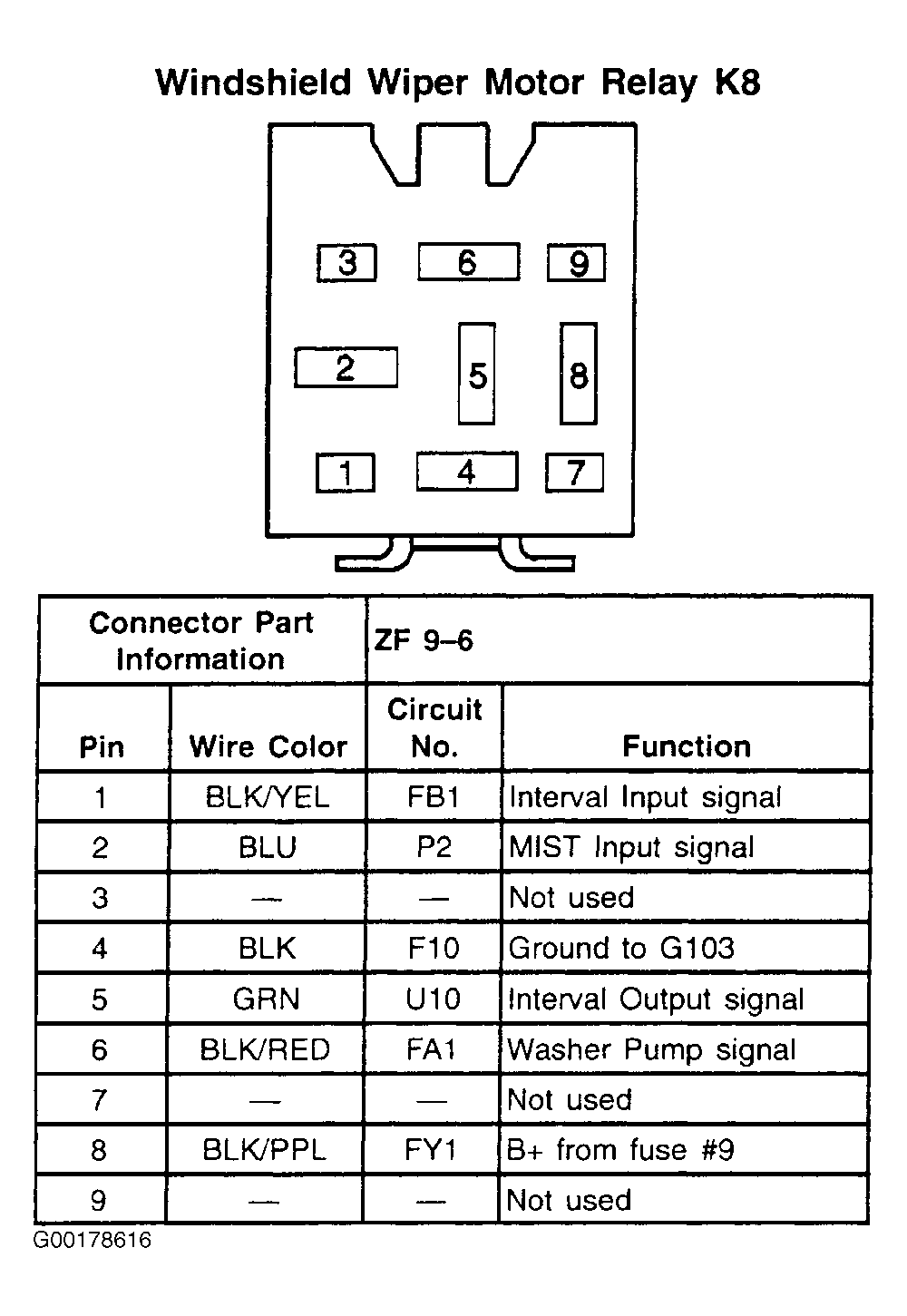

Fig 1: Windshield Wiper Motor Relay K8 - 9-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
