Continuously Variable Road Sensing Suspension (CVRSS) Module C2

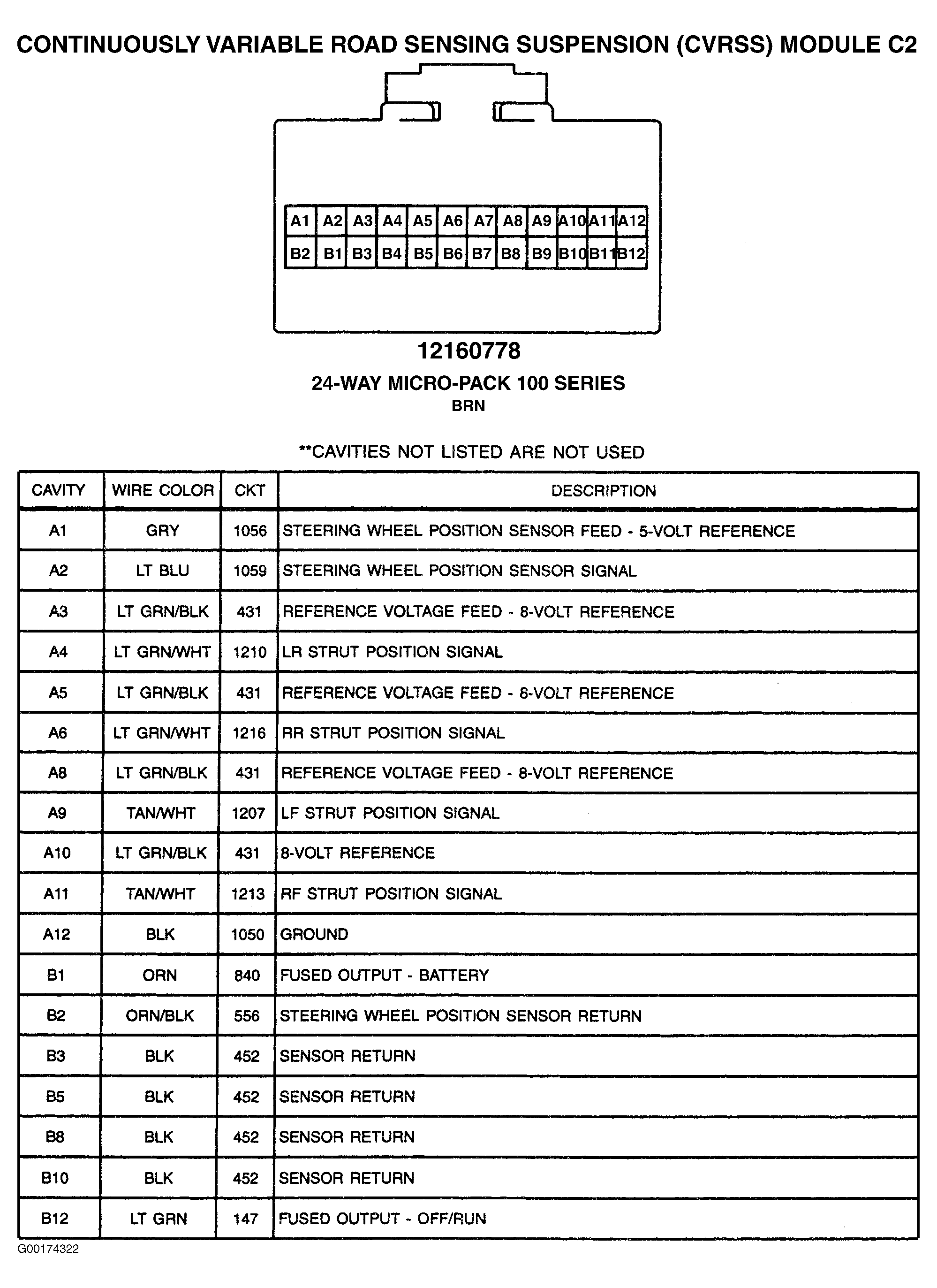

Fig 1: Continuously Variable Road Sensing Suspension (CVRSS) Module C2 - 24-Pin Connector (Brown)
G00174322Courtesy of GENERAL MOTORS CORP.
