Body Control Module (BCM): Installation

Install BCM and reconnect harness connectors. Install rear seat back and cushion. Install 10-amp COMFORT fuse in trunk compartment fuse block. Reconnect negative battery cable.

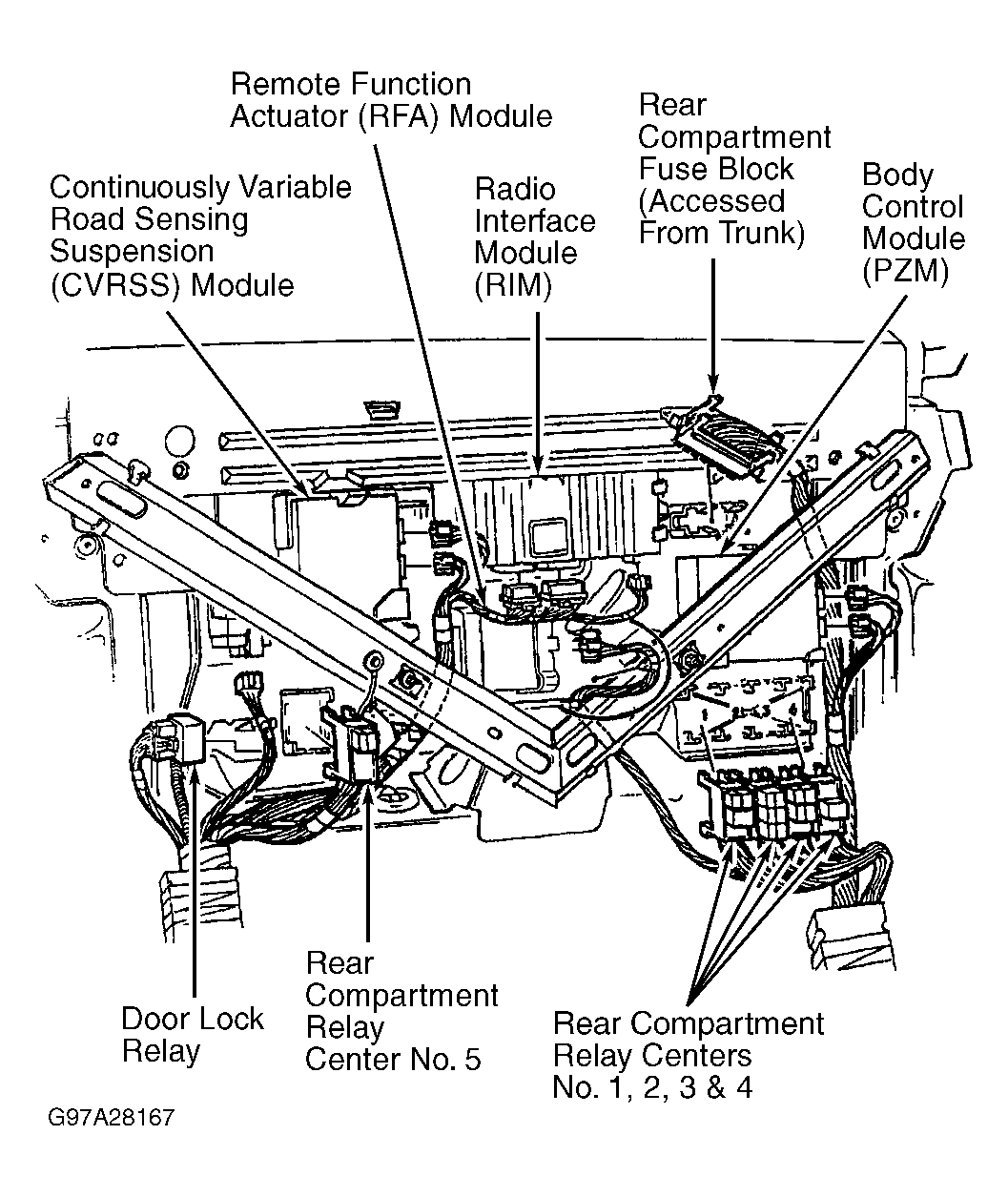

Fig 1: Locating BCM

Courtesy of GENERAL MOTORS CORP.
