Connector Terminal Identification: Abs: Abs/TCS/ICCS

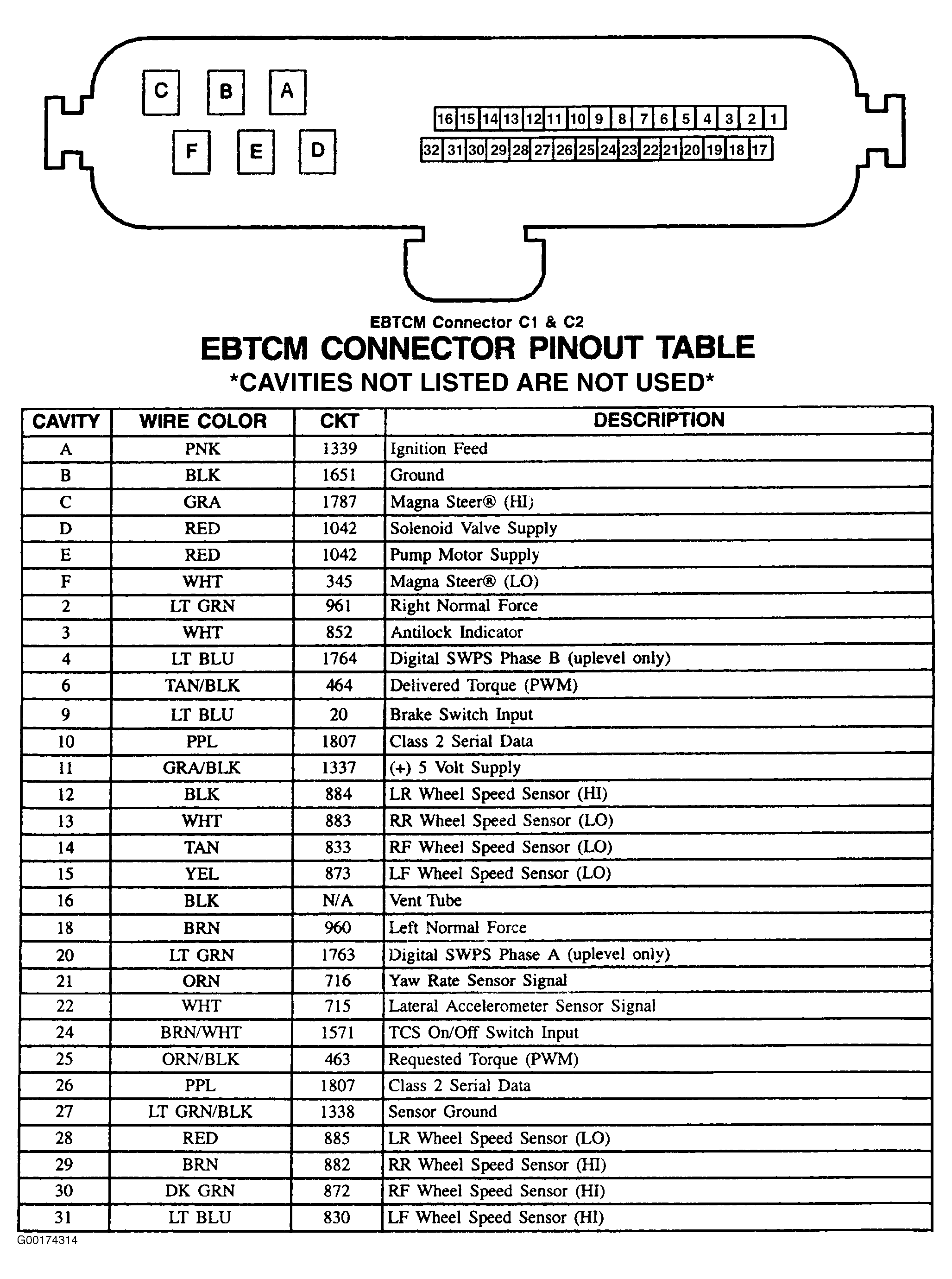

Fig 1: ABS/TCS/ICCS (EBTCM Connector C1 & C2) - 37-Pin Connector
G00174314Courtesy of GENERAL MOTORS CORP.
