Body Control Module (PZM) C1

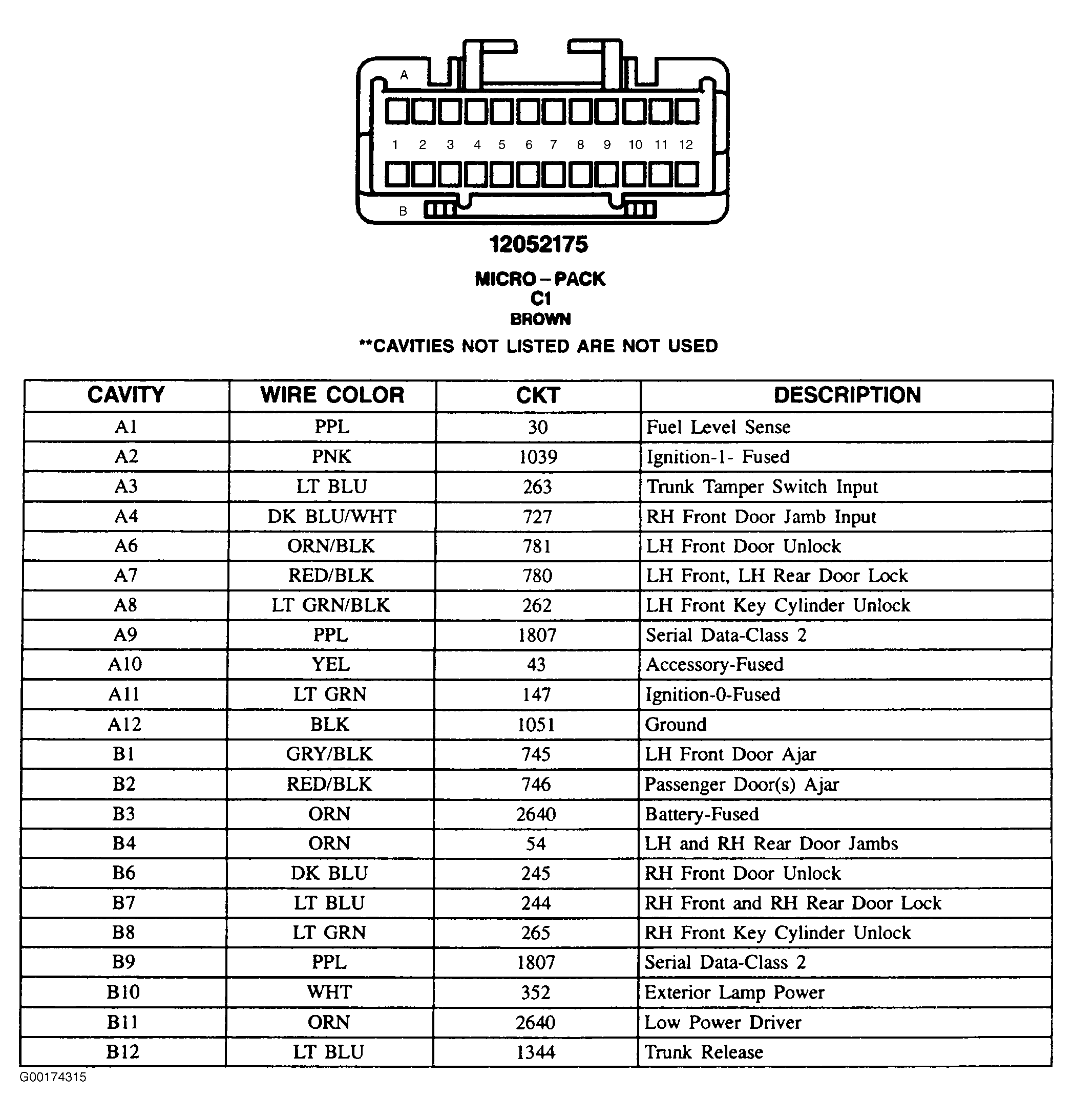

Fig 1: Body Control Module (PZM) C1 - 24-Pin Connector (Brown)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
