Compact Disc (Cd) Changer

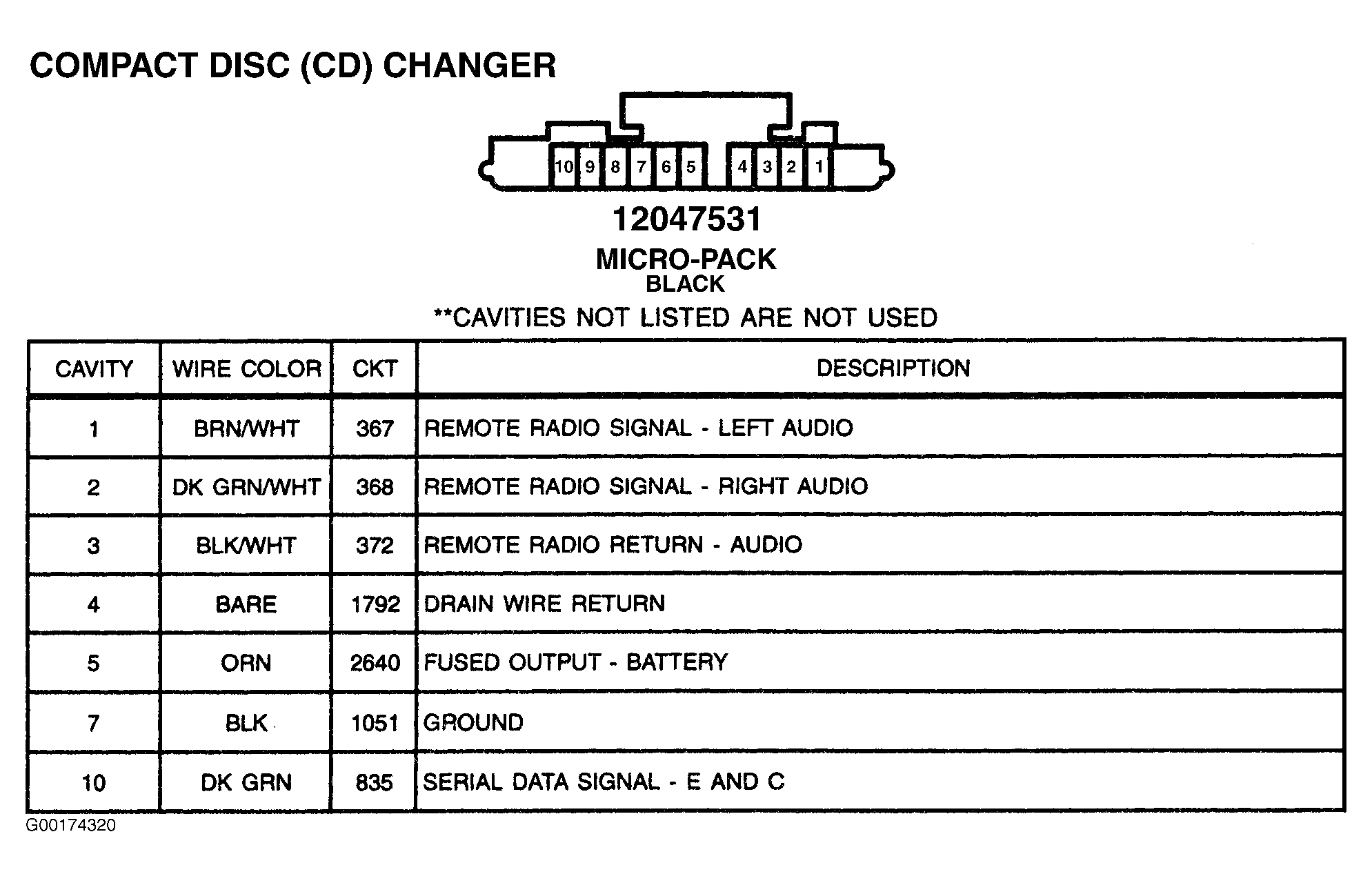

Fig 1: Compact Disc (CD) Changer - 10-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
