Continuously Variable Road Sensing Suspension (CVRSS) Module C1

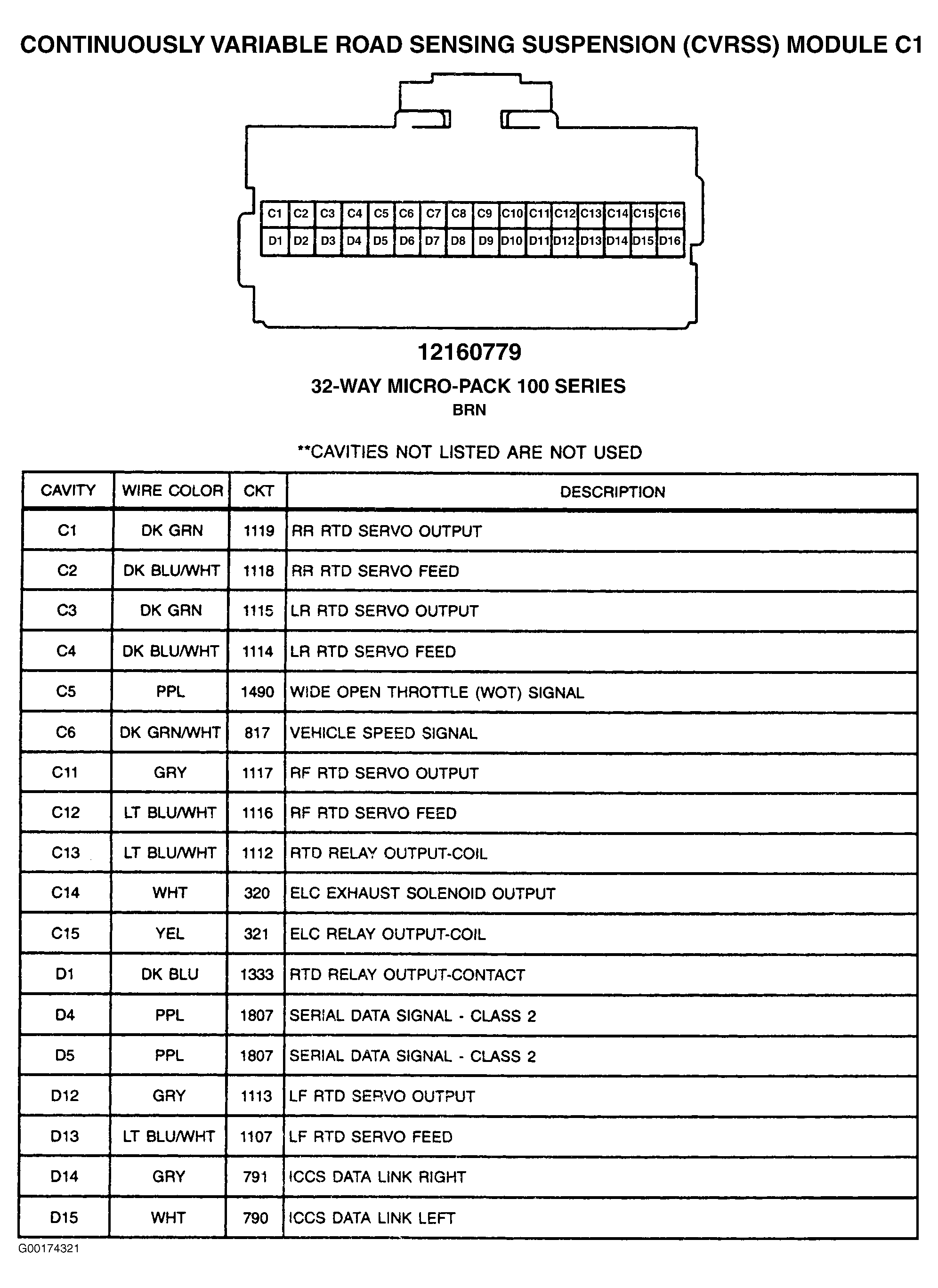

Fig 1: Continuously Variable Road Sensing Suspension (CVRSS) Module C1 - 32-Pin Connector (Brown)
G00174321Courtesy of GENERAL MOTORS CORP.
