Cruise Control Module

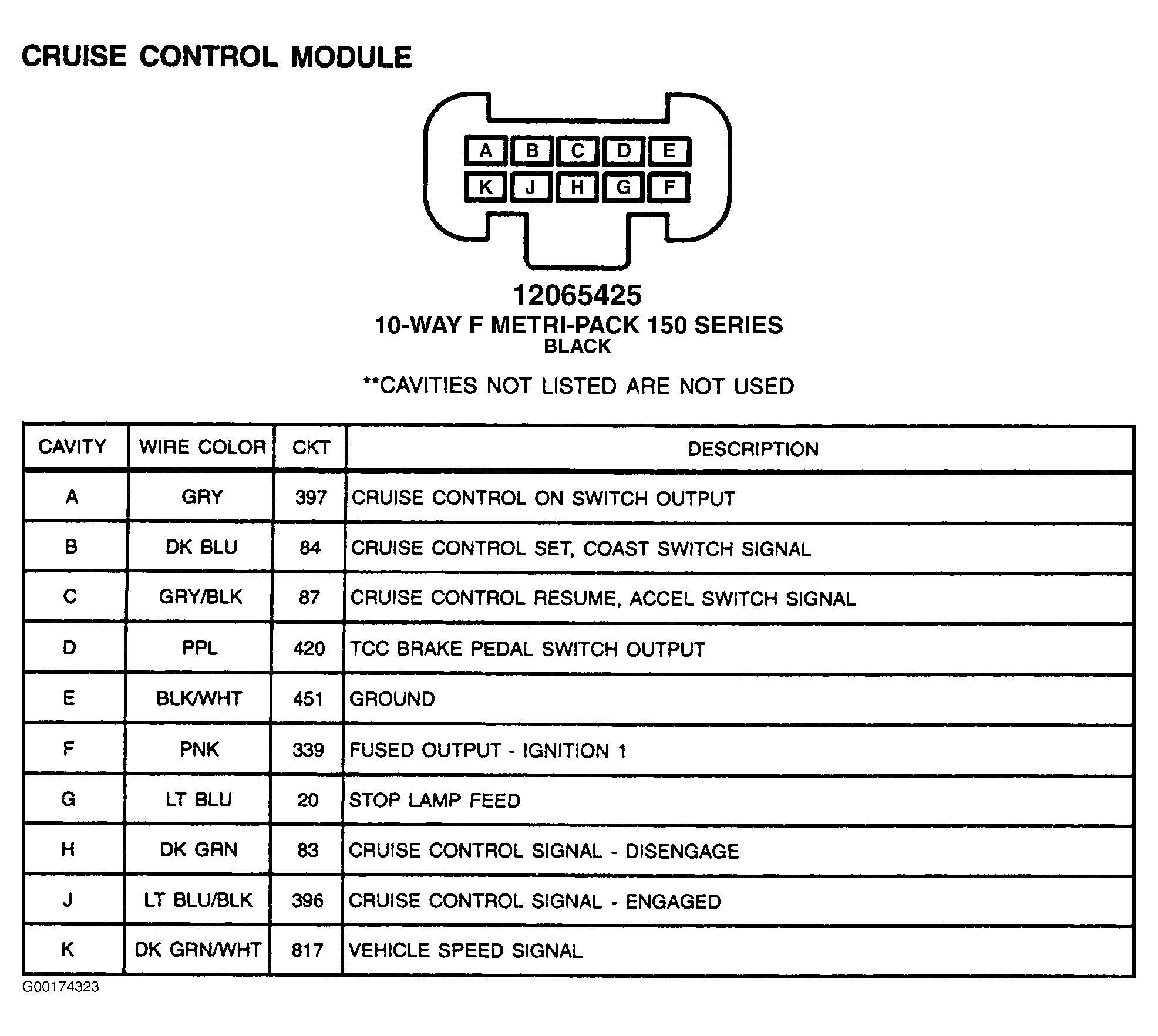

Fig 1: Cruise Control Module - 10-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
