Engine Oil Pressure Switch

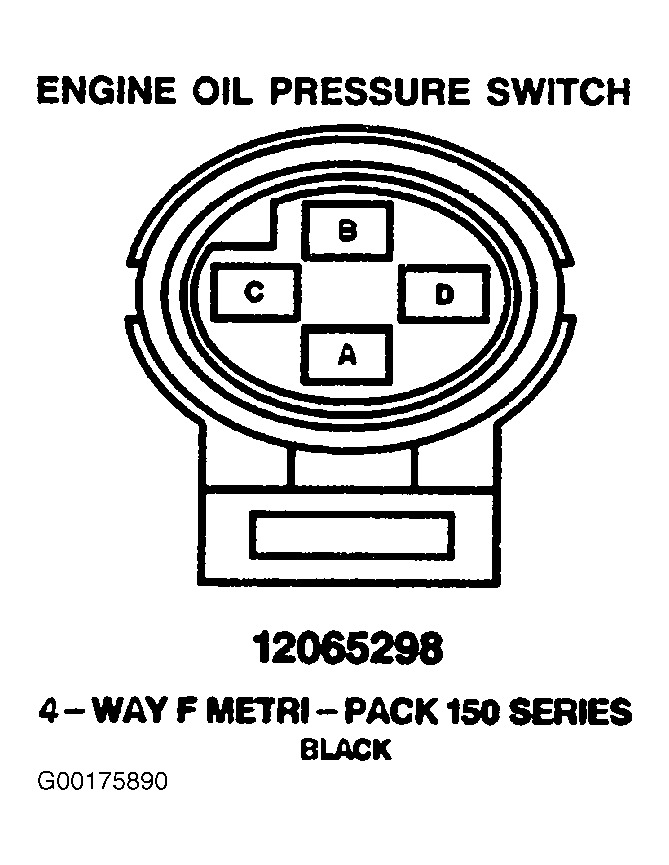

Fig 1: Engine Oil Pressure Switch - 4-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
