Headlamp Switch - C1

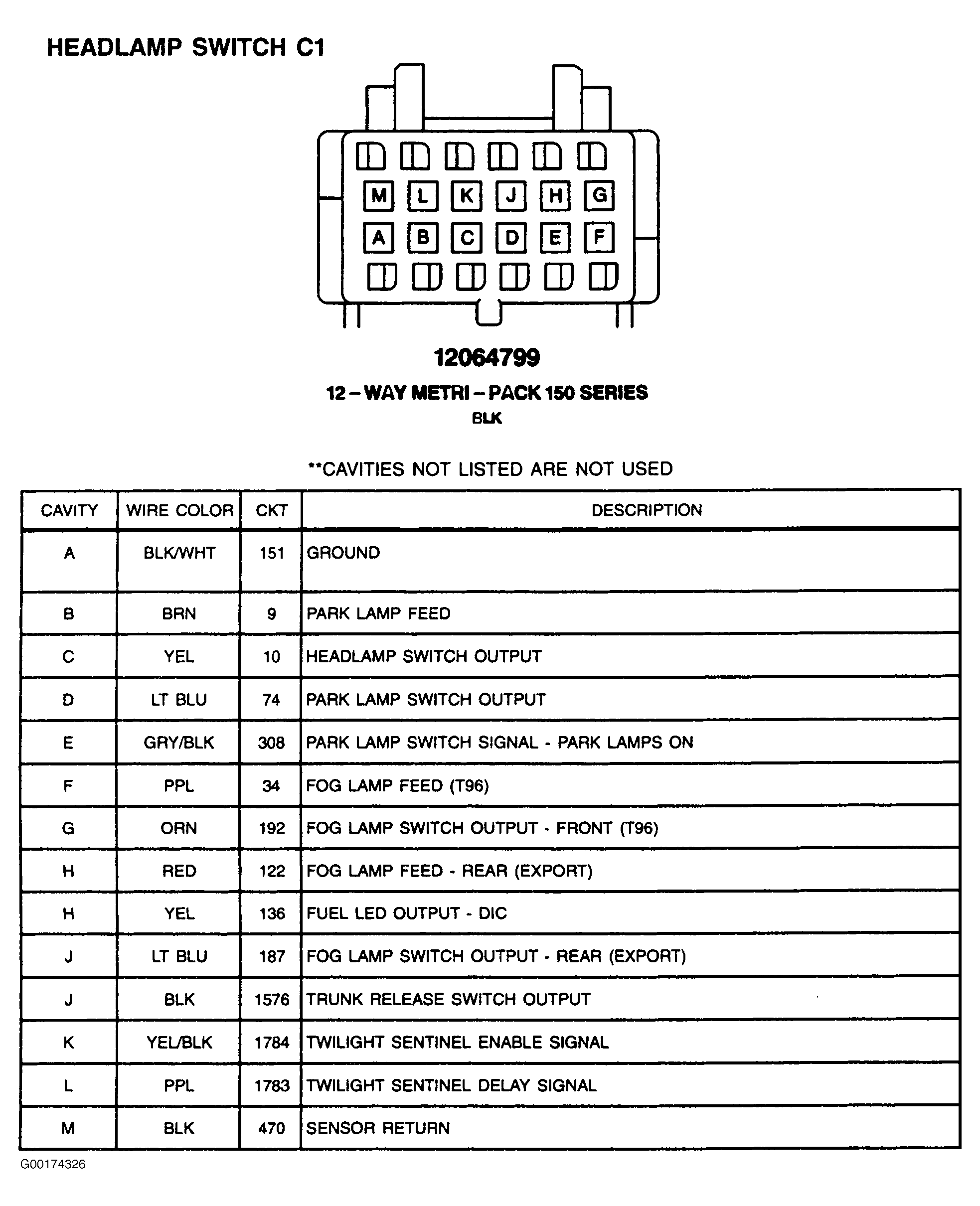

Fig 1: Headlamp Switch C1 - 12-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
