Memory Seat Module (MSM) - C1

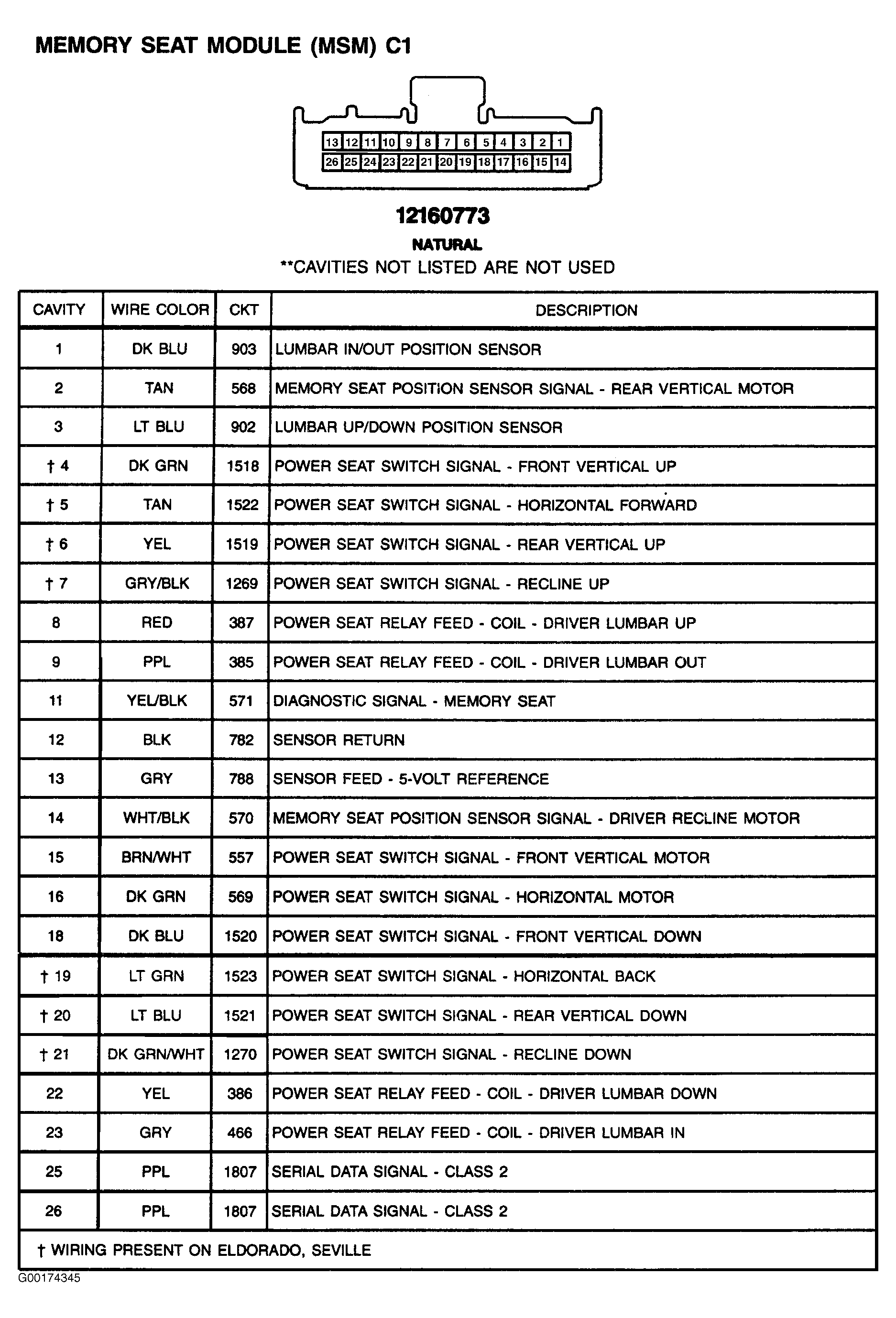

Fig 1: Memory Seat Module (MSM) C1 - 26-Pin Connector (Natural)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
