Memory Seat Module (MSM) - C3

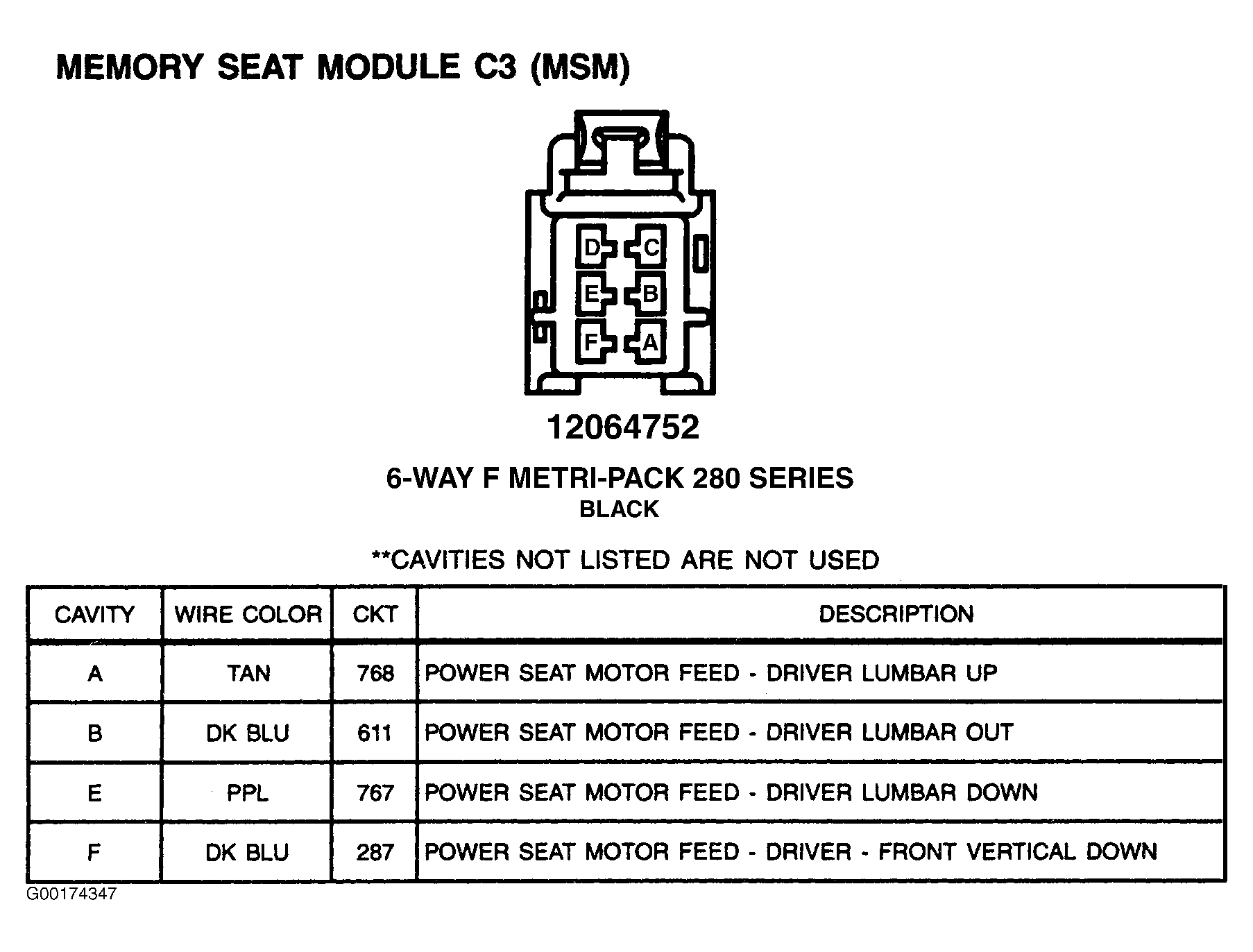

Fig 1: Memory Seat Module (MSM) C3 - 6-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
