Radio Interface Module (RIM) - C1

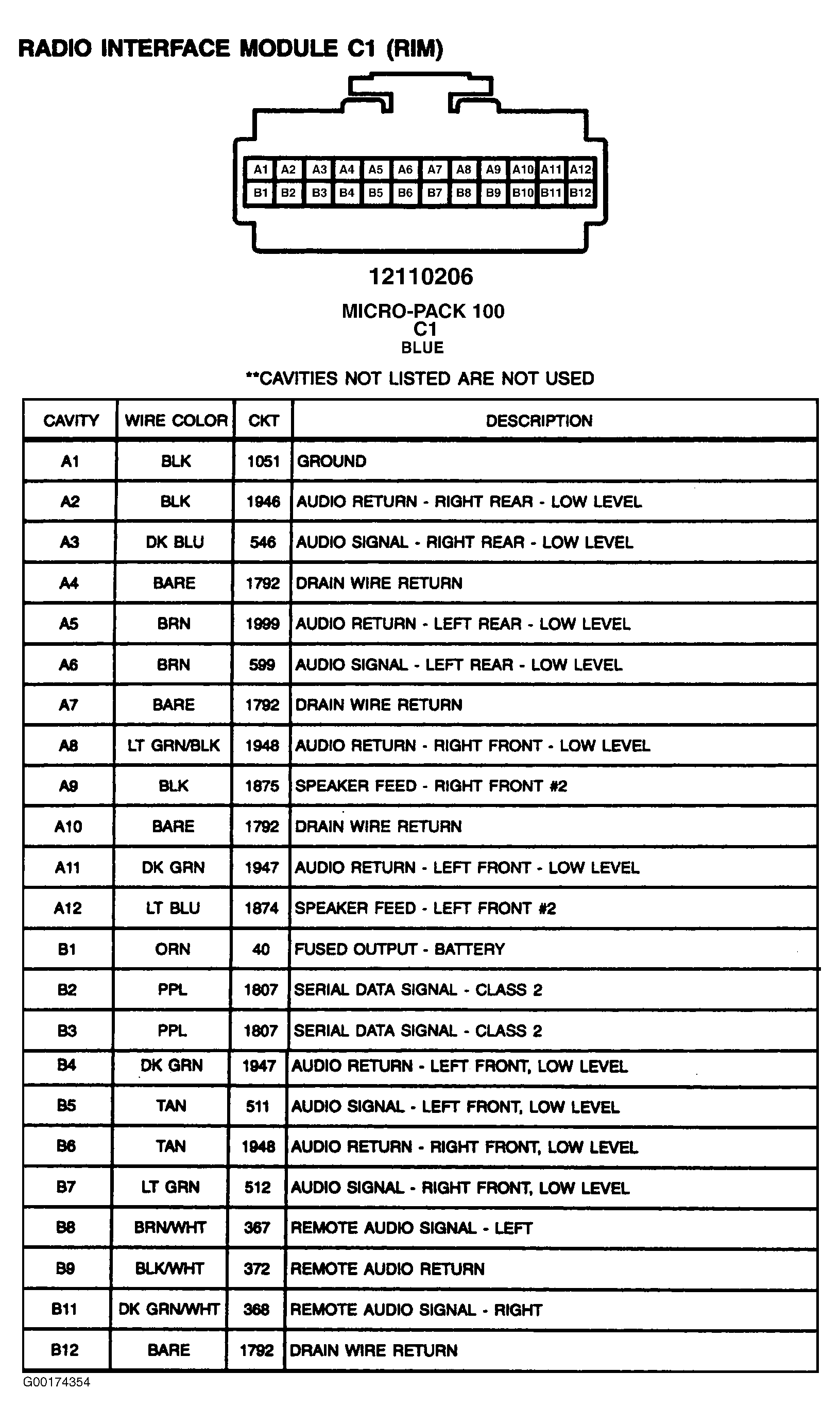

Fig 1: Radio Interface Module (RIM) C1 - 24-Pin Connector (Blue)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
