Radio Interface Module (RIM) - C2

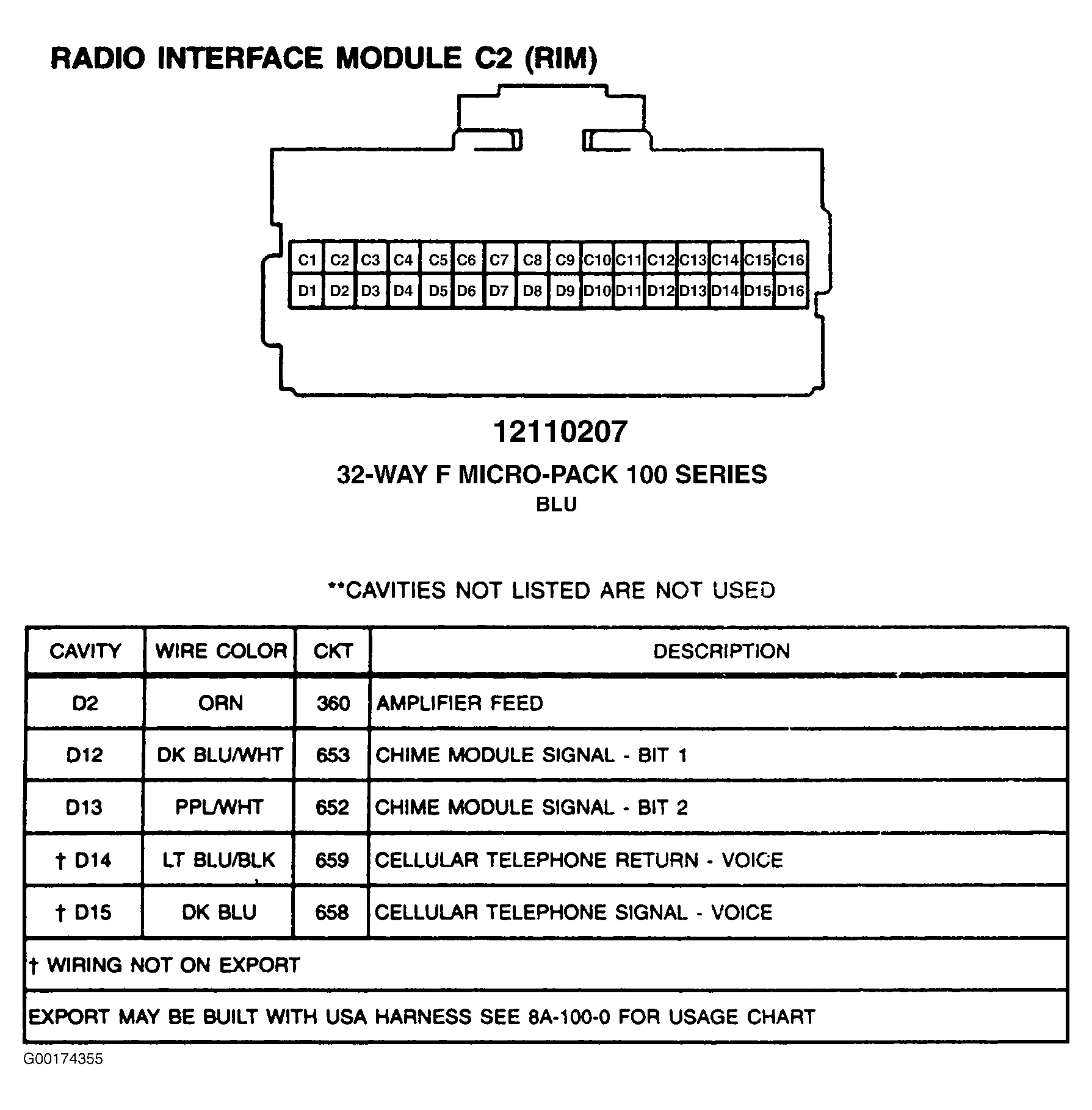

Fig 1: Radio Interface Module (RIM) C2 - 32-Pin Connector (Blue)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
