Seat Relay Module - C1

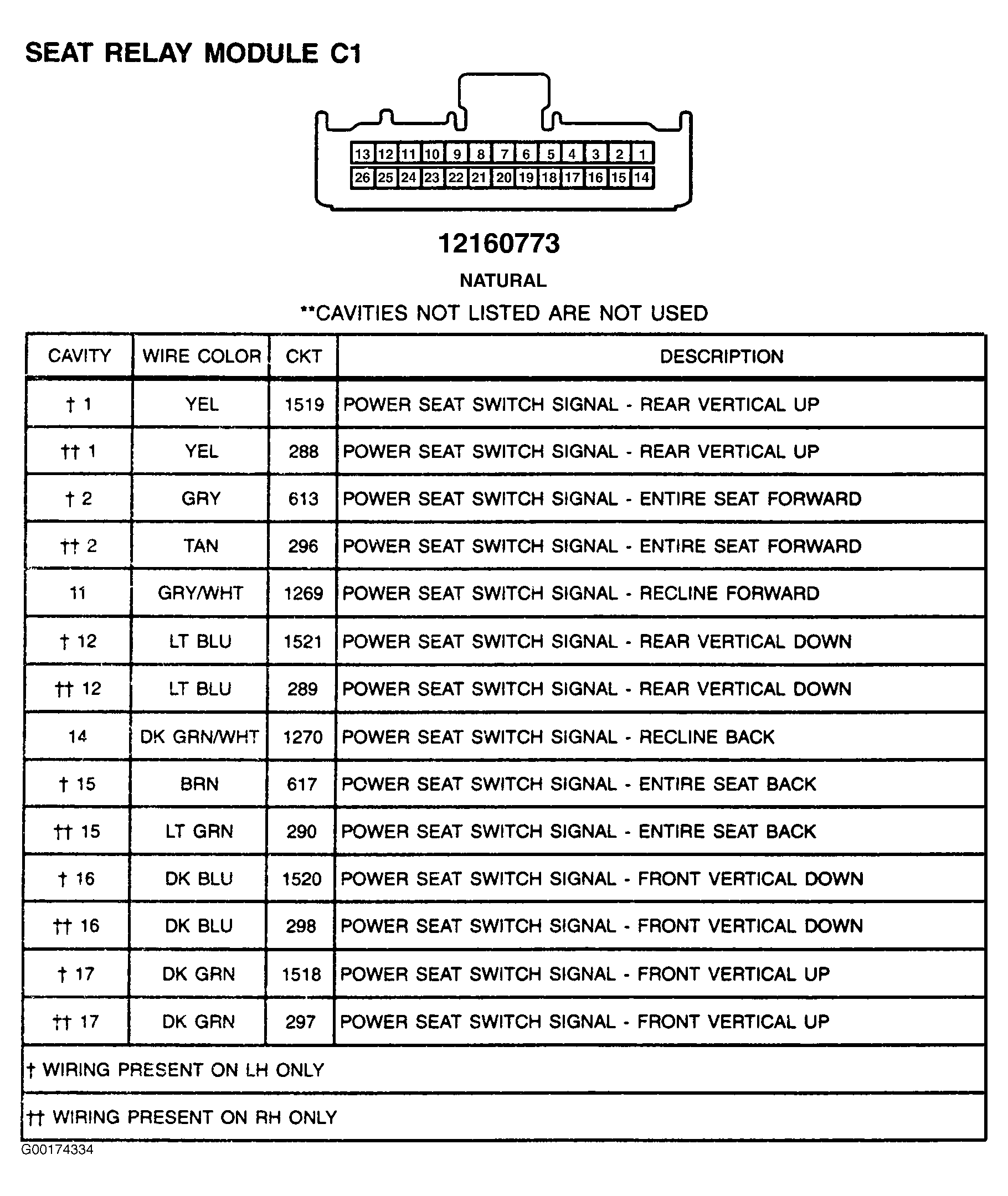

Fig 1: Seat Relay Module C1 - 26-Pin Connector (Natural)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
