Seat Relay Module C2 - Left-Hand (DEVILLE)

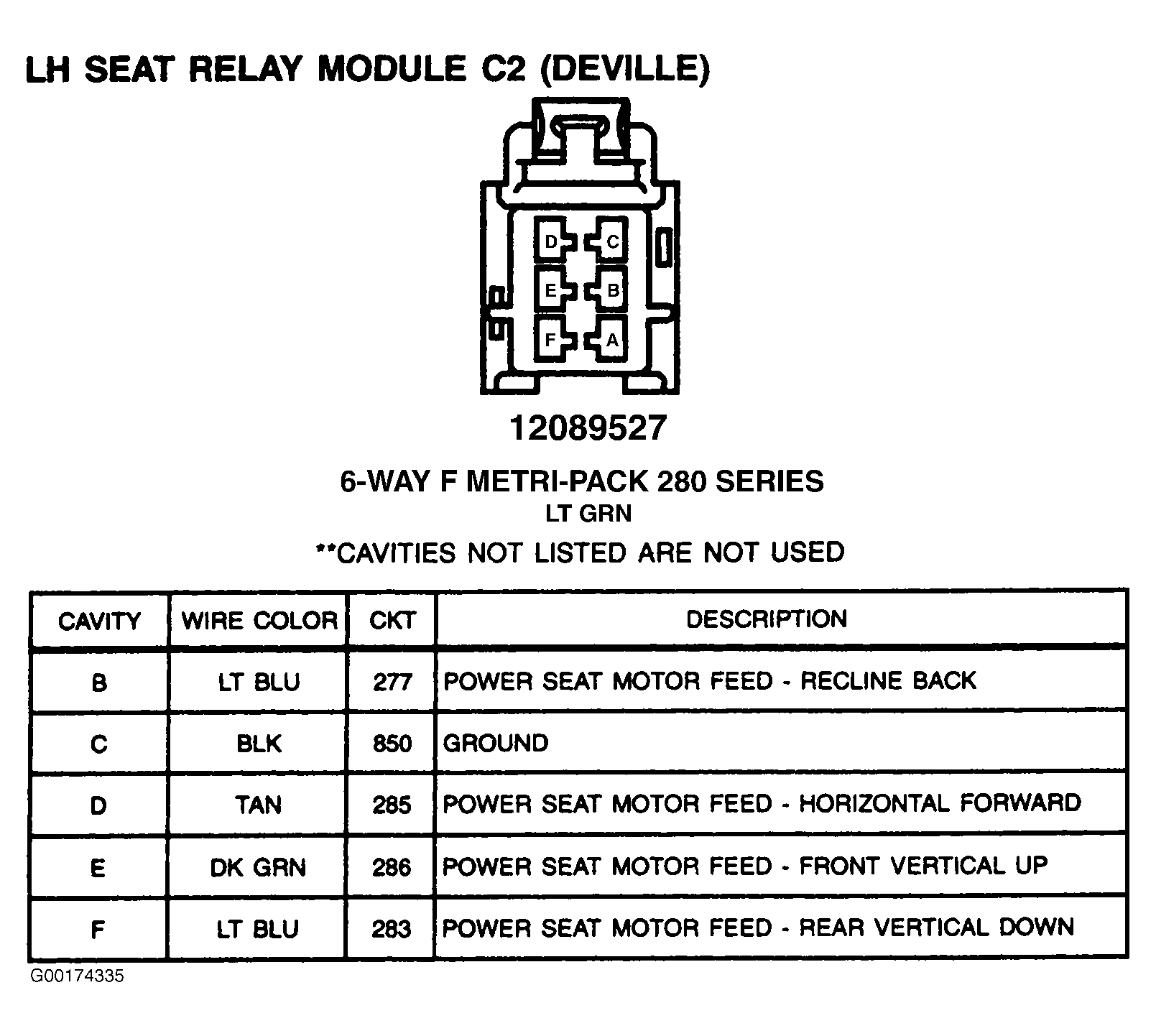

Fig 1: Seat Relay Module C2 - Left-Hand (DeVille) - 6-Pin Connector (Light Green)
G00174335Courtesy of GENERAL MOTORS CORP.
