Body Control Module (BCM): Removal

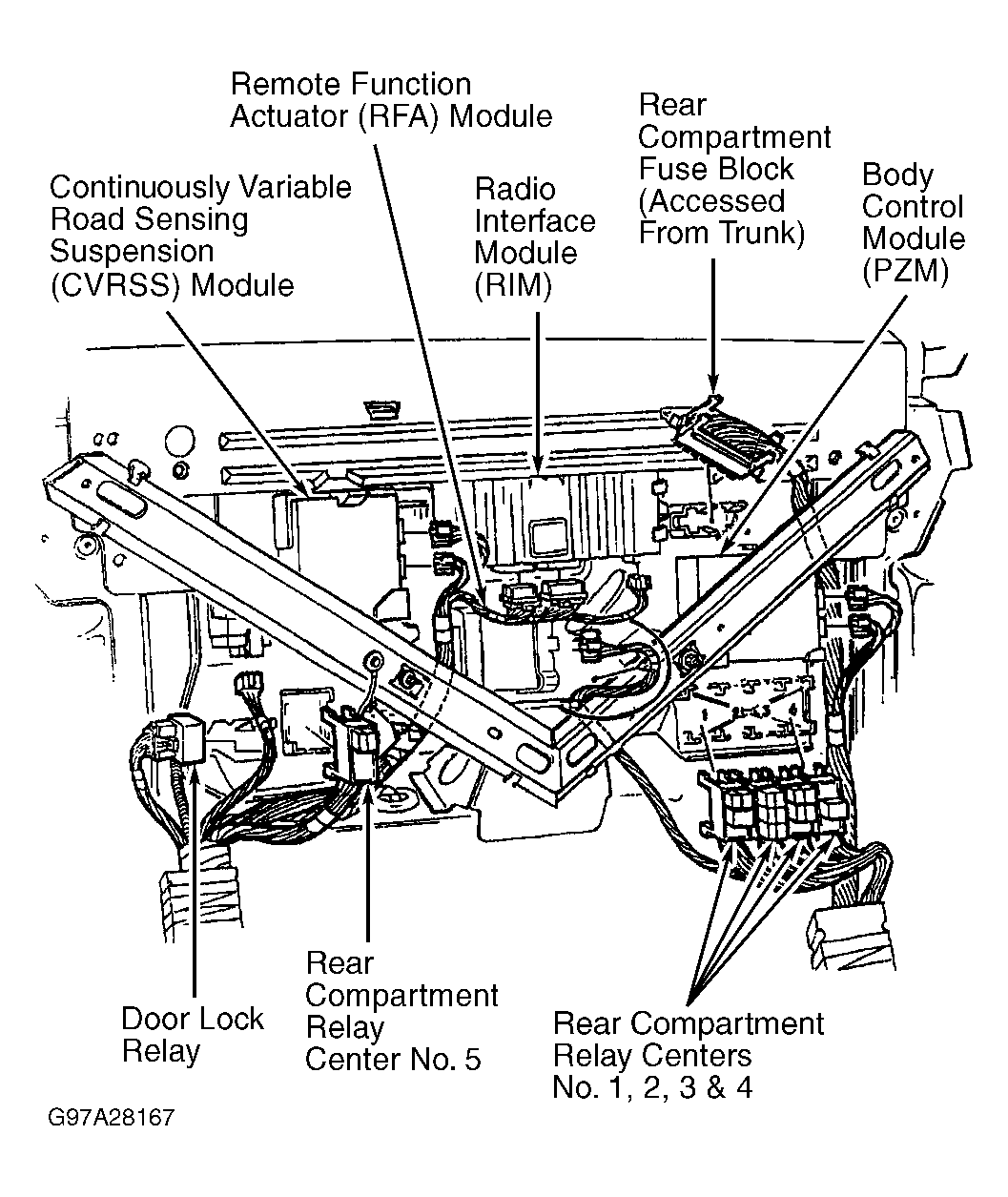

Disconnect negative battery cable. Remove 10-amp COMFORT fuse located in trunk compartment fuse block. Remove rear seat cushion. Remove rear seat back. Locate BCM in trunk, on electronic module center, attached to back of rear seat. See Figure . Disconnect BCM harness connectors. Remove BCM from vehicle.
