Body Control Module (BCM): Installation

Reconnect harness connectors and reinstall BCM. BCM is fully installed when retainer clips over edge of BCM. Reinstall all trim finish panels. Reconnect negative battery cable. Reprogram BCM. See PROGRAMMING  .

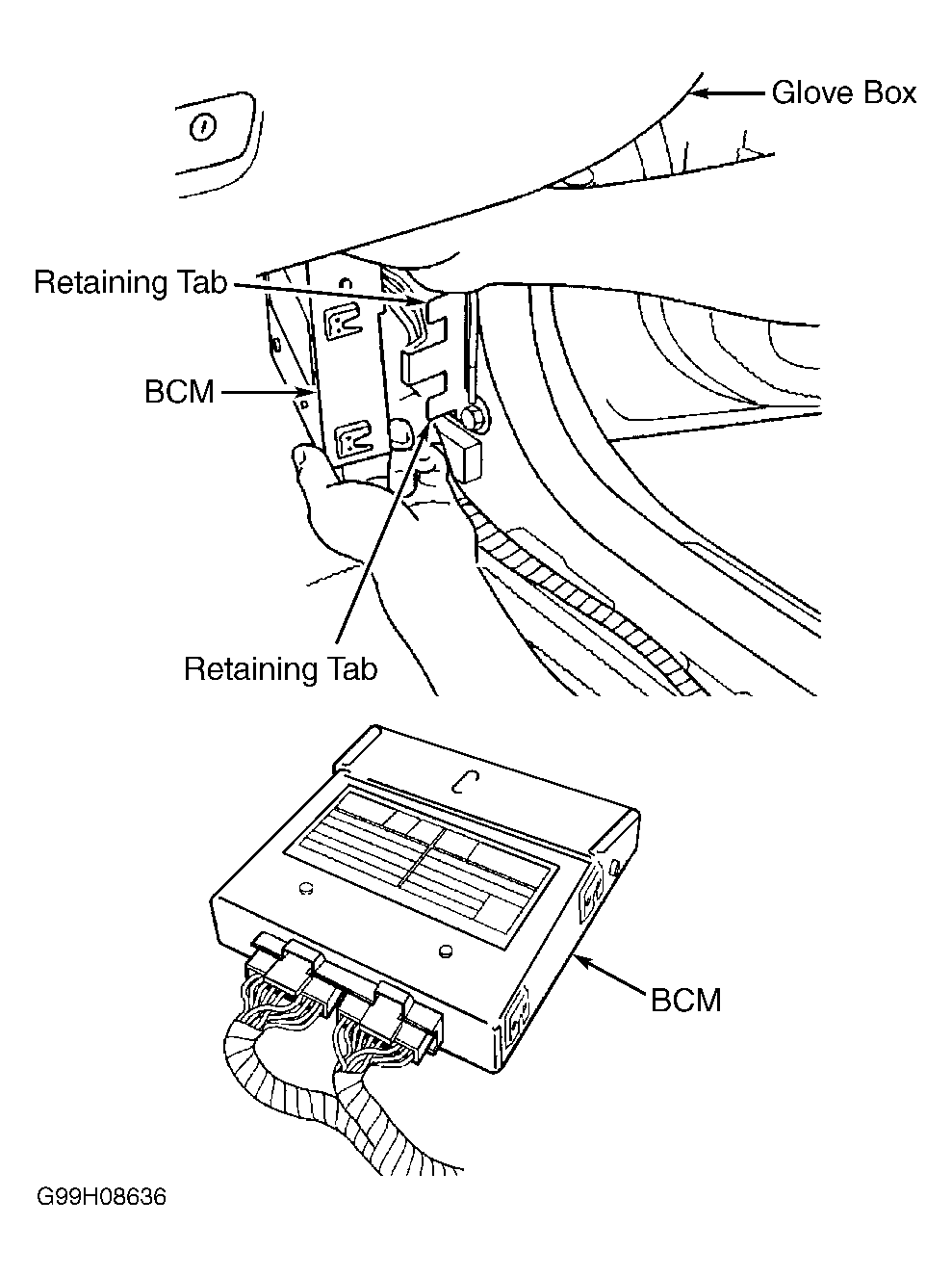

Fig 1: Removing BCM

Courtesy of GENERAL MOTORS CORP.
