Component Locations

COMPONENT LOCATIONS

Component

Location

Battery

⁽¹⁾ Under Right Side Of Rear Seat

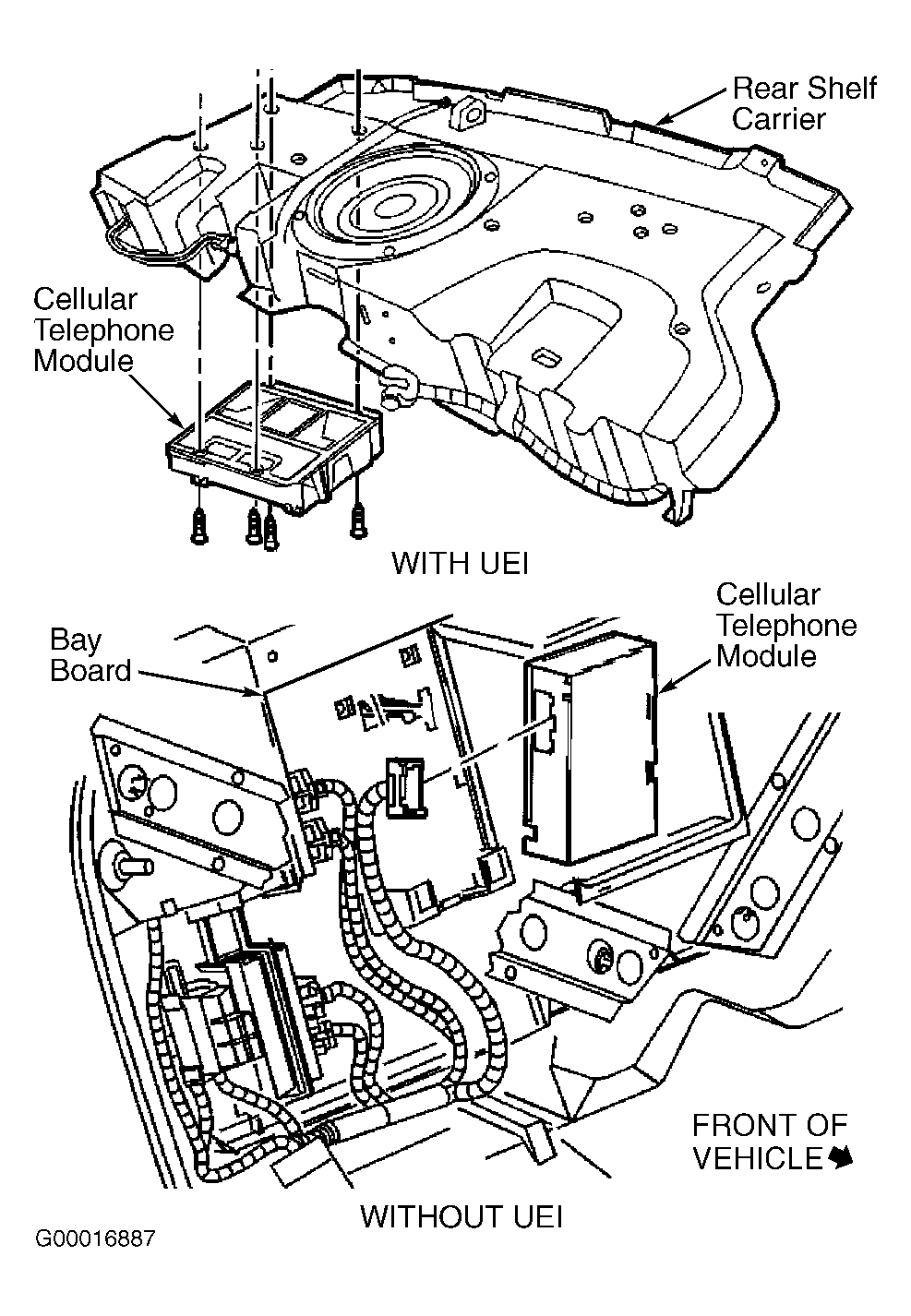

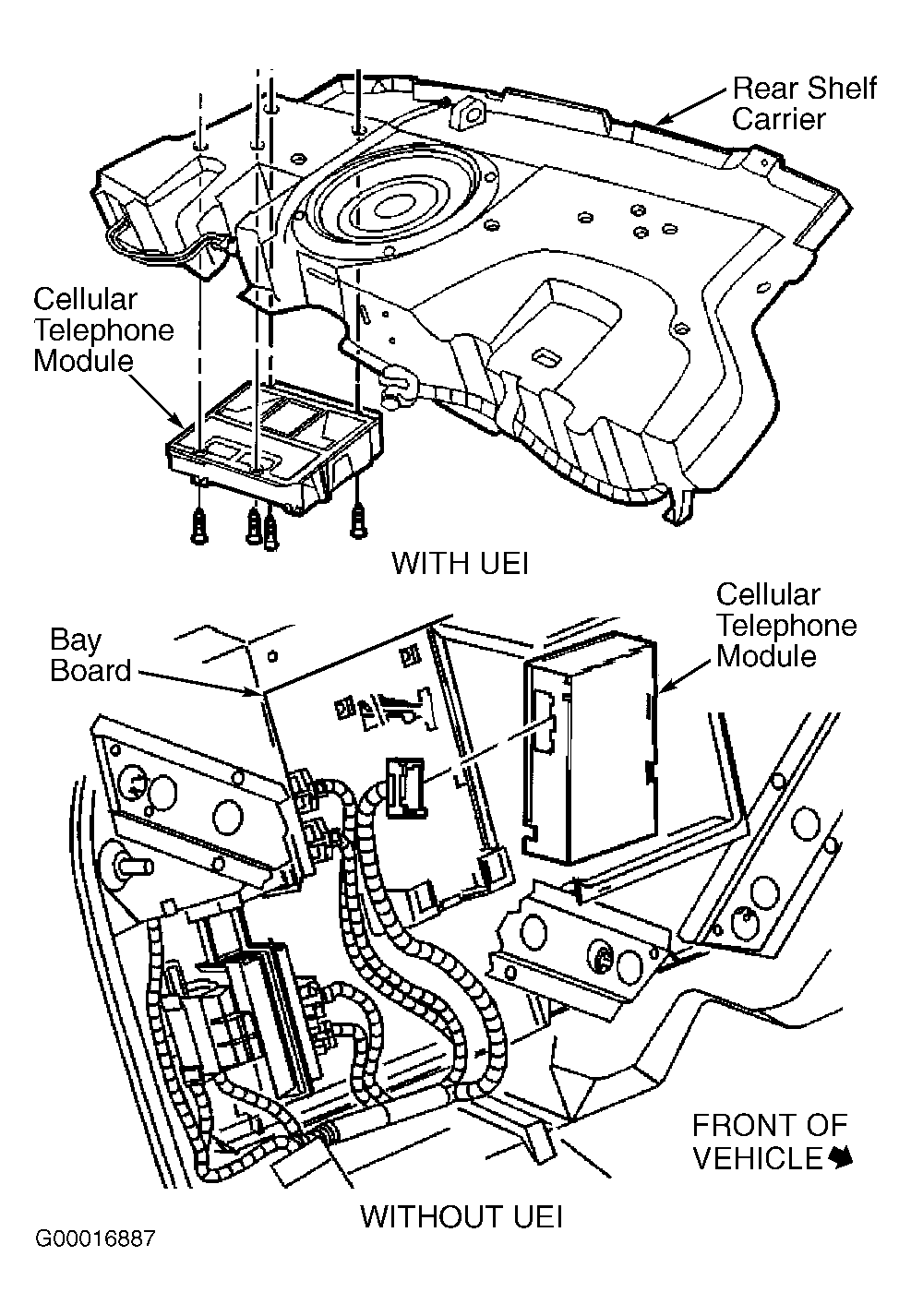

Cellular Telephone Module

⁽²⁾

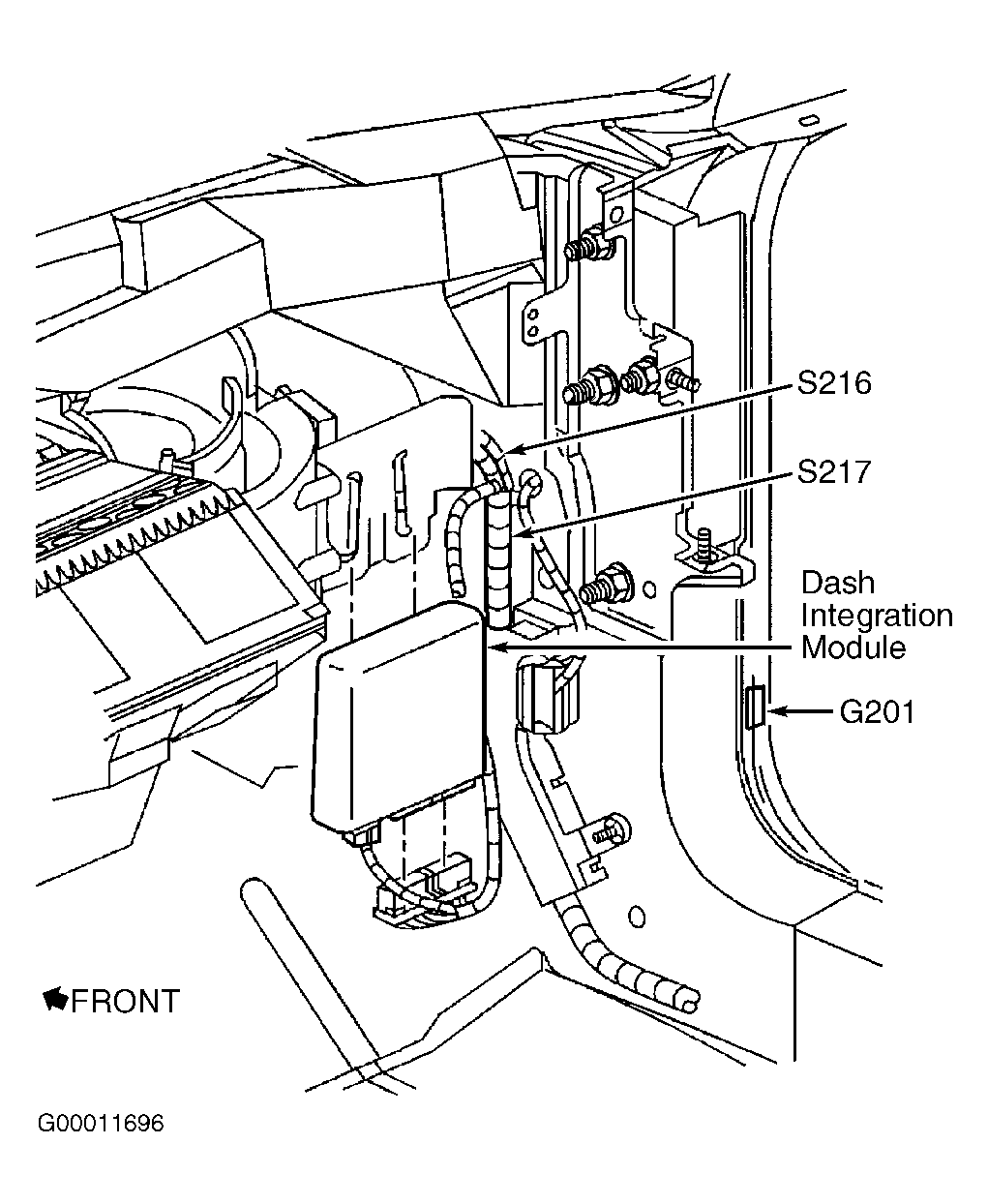

Dash Integration Module

⁽³⁾ Under Right Side Of Instrument Panel

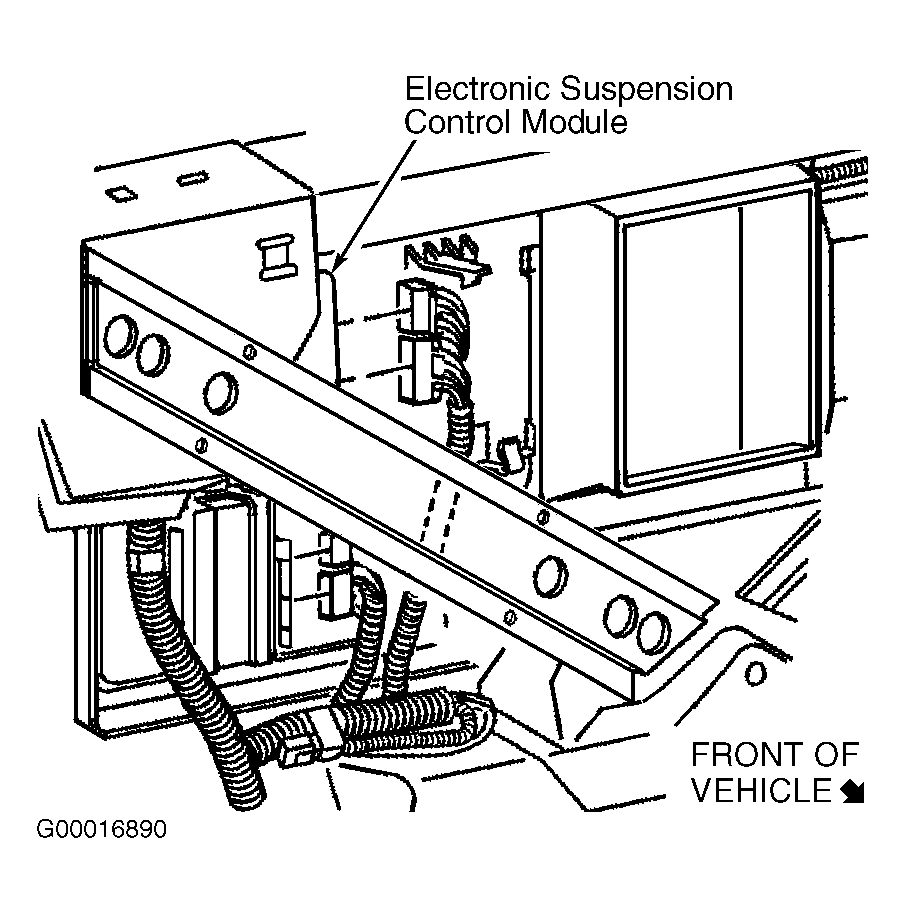

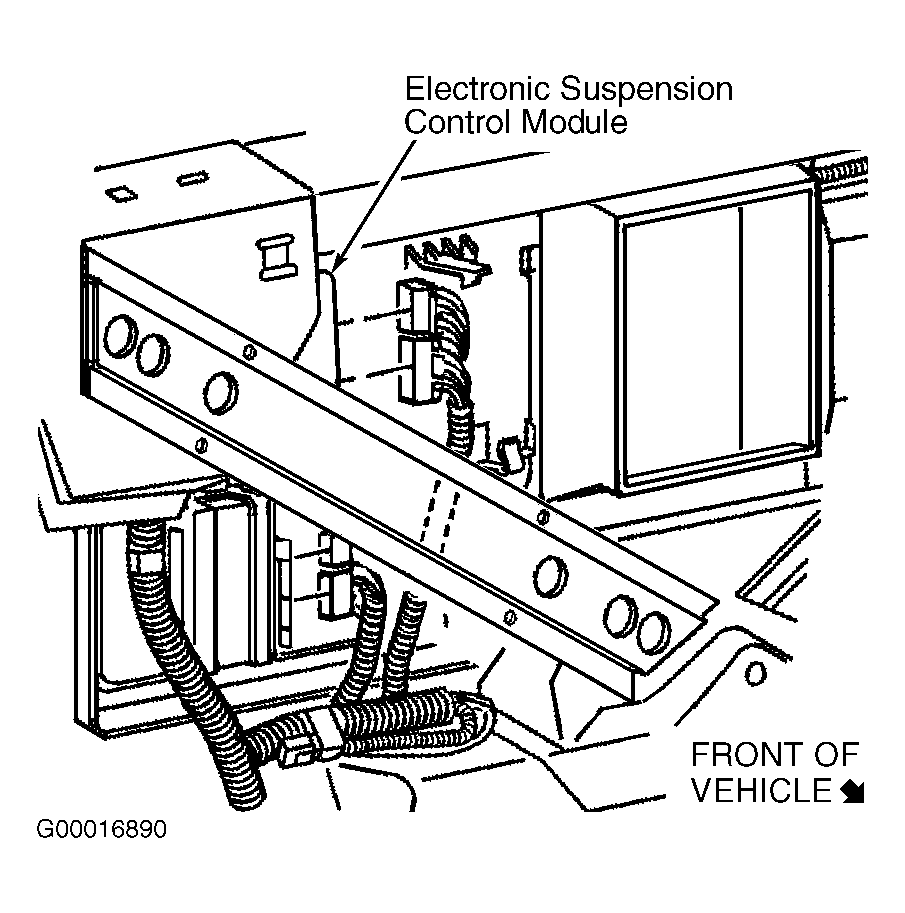

Electronic Suspension Control Module

⁽⁴⁾ Right Rear Of Passenger Compartment, Behind Rear Seat Back, Attached To Bay Board

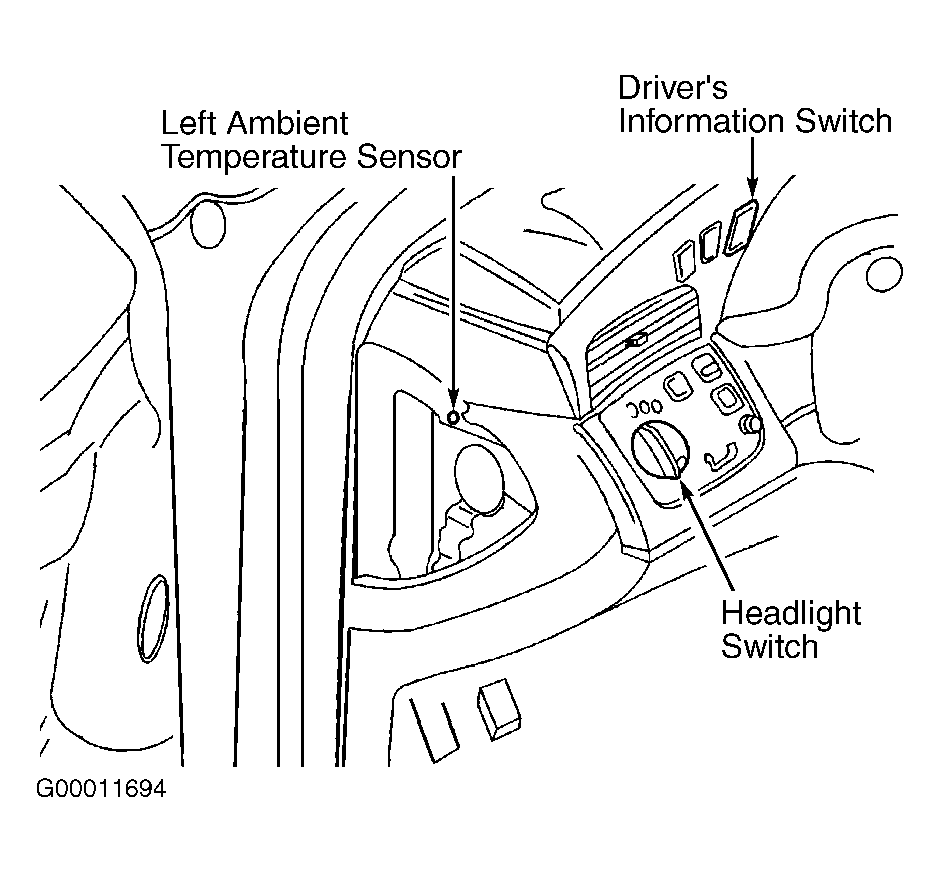

Instrument Panel Module

⁽⁵⁾ Center Of Instrument Panel, Above Radio

Rear Fuse Block

⁽¹⁾ Under Left Side Of Rear Seat

Rear Integration Module

⁽⁶⁾ Right Rear Of Passenger Compartment, Behind Rear Seat Back, Attached To Bay Board

Rear Object Sensor Control Module

Left Rear Of Trunk

Rear Window Power Sunshade Module

Under Center Of Rear Package Shelf

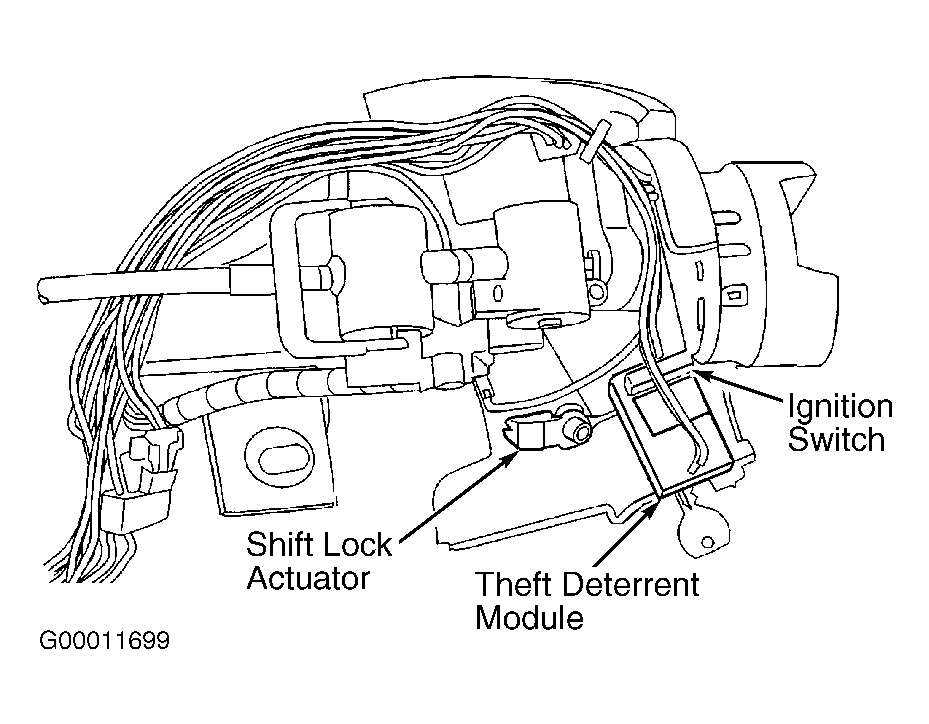

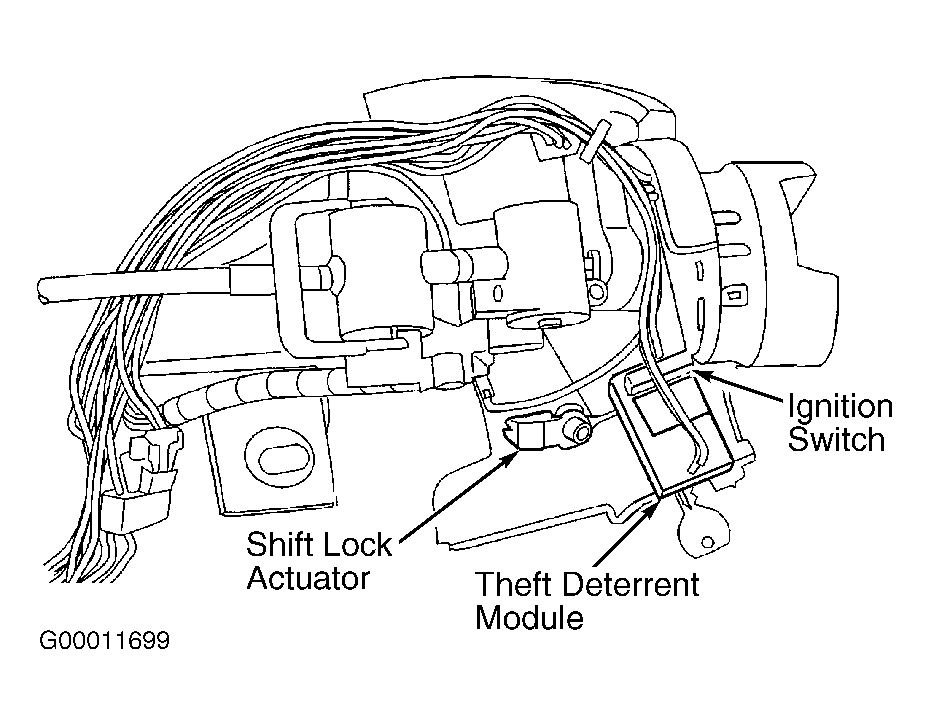

Theft Deterrent Module

⁽⁷⁾ Under Ignition Lock Cylinder On Steering Column

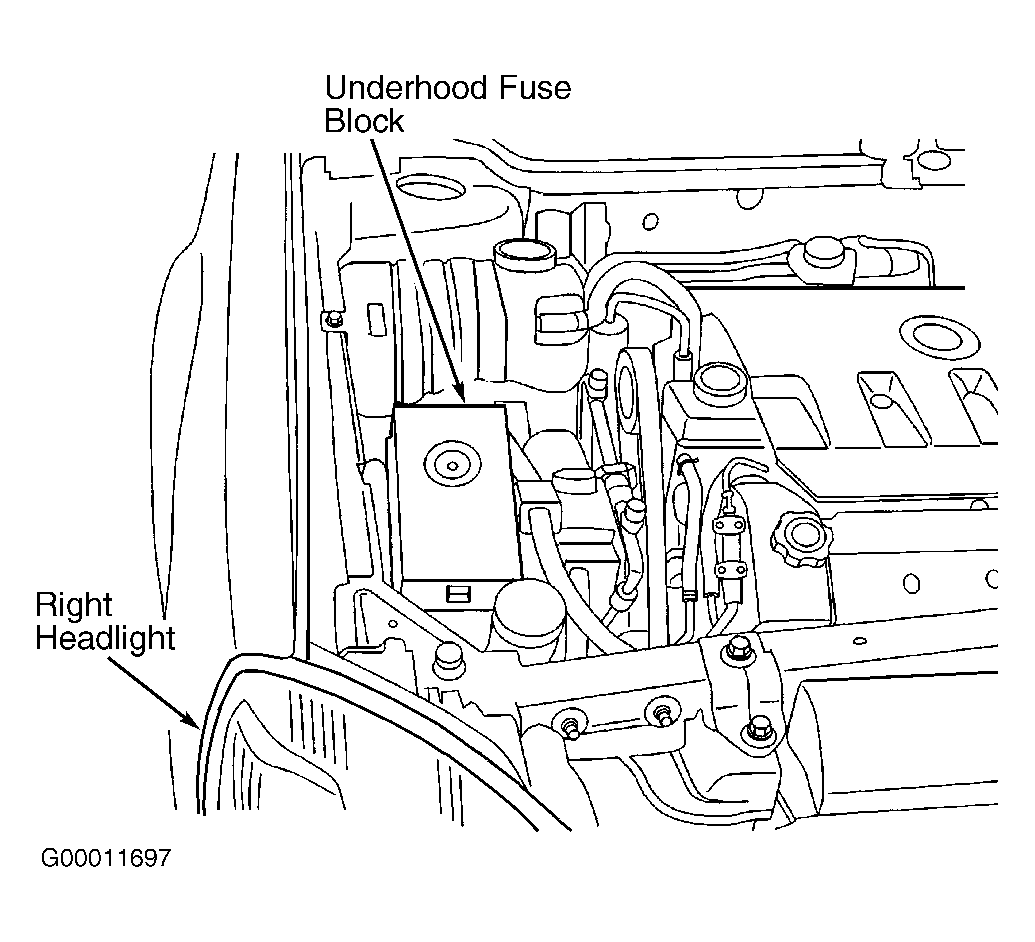

Underhood Fuse Block

⁽⁸⁾ Right Front Of Engine Compartment

Vehicle Communication/Interface Unit (On-Star(R))

⁽⁹⁾ Right Rear Of Passenger Compartment, Behind Rear Seat Back, Attached To Bay Board

⁽¹⁾	See Fig 1 .

⁽²⁾	See Fig 2 .

⁽³⁾	See Figure .

⁽⁴⁾	See Fig 3 .

⁽⁵⁾	See Figure .

⁽⁶⁾	See Figure .

⁽⁷⁾	See Fig 4 .

⁽⁸⁾	See Fig 5 .

⁽⁹⁾	See Fig 6 .

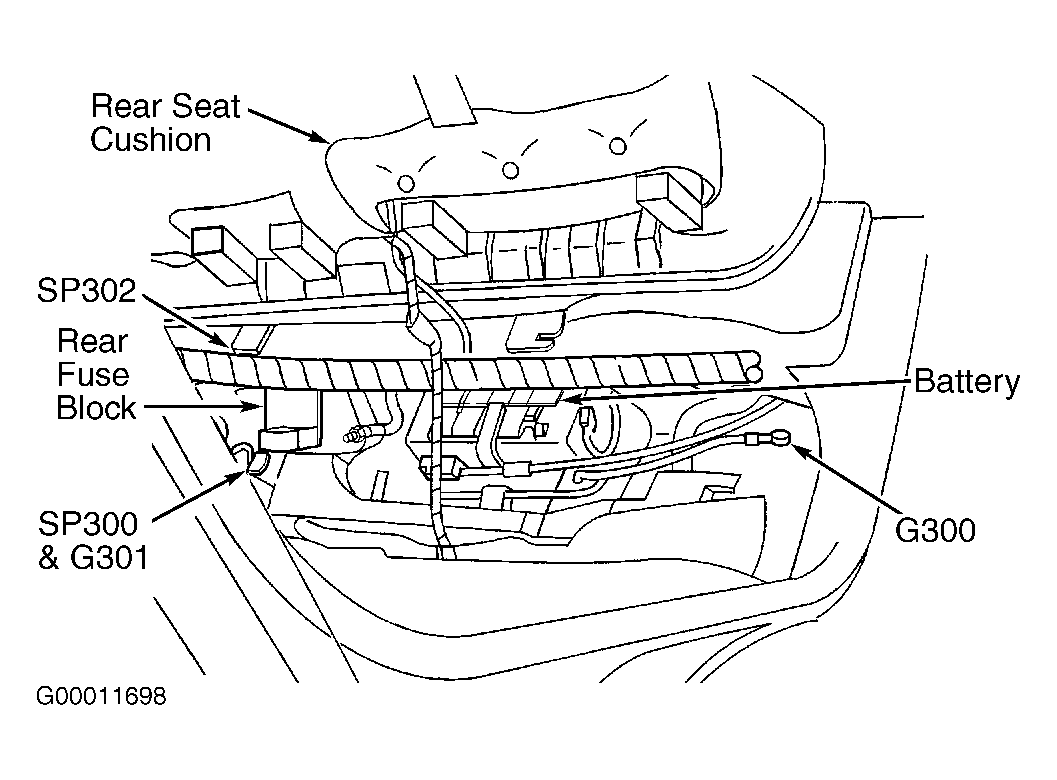

Fig 1: Locating Components Under Rear Seat Cushion
