Rear Integration Module

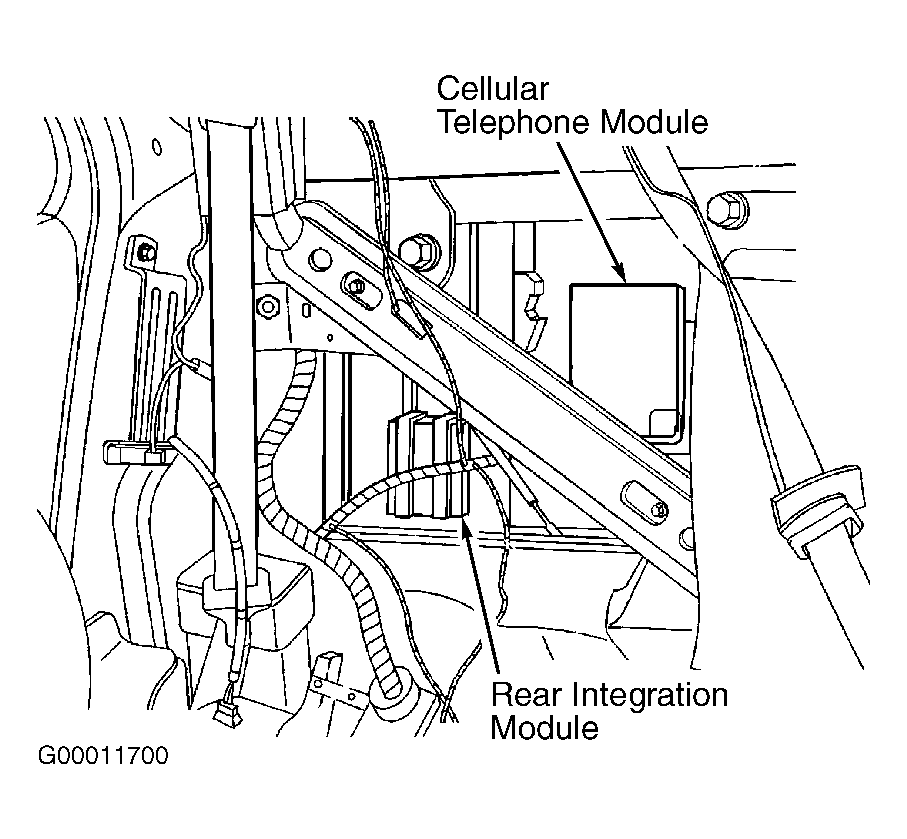

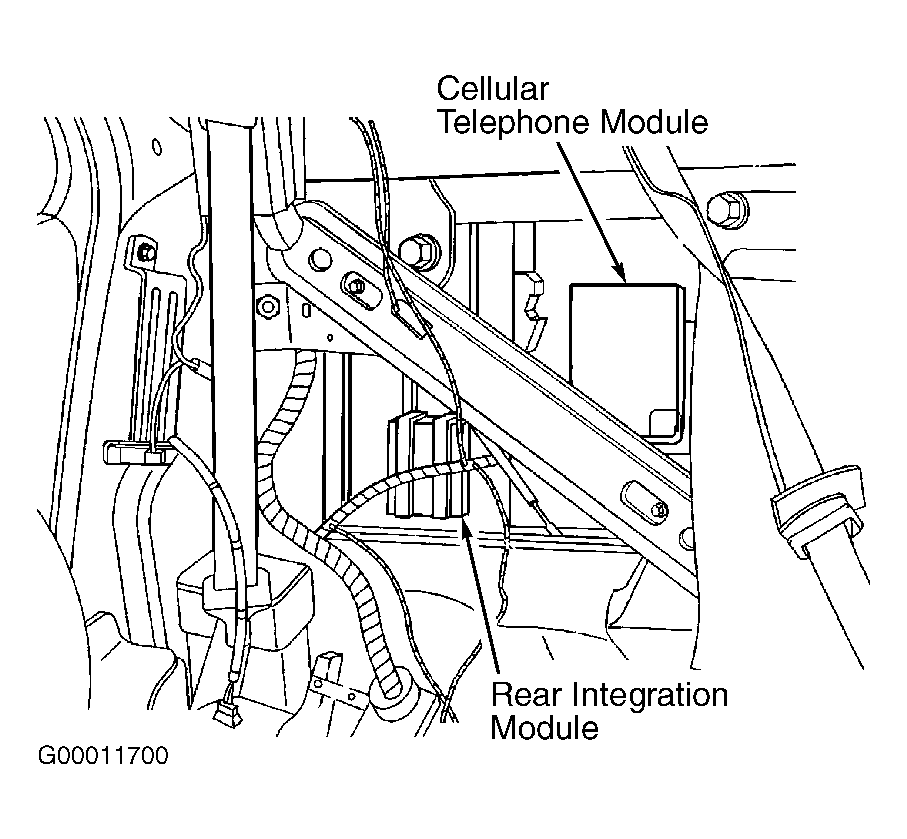

The Rear Integration Module (RIM) is located in right rear of passenger compartment, behind rear seat back, attached to bay board. See Fig 1 . RIM controlled functions include fuel level sensor input, heated seat controls, HVAC blower control, rear defogger control, park brake relay controls, various controls for interior lights, reverse control for backup lights and automatic day/night mirror, rear foglights control, fuel door and rear compartment lid release controls, Retained Accessory Power (RAP) control for sunroof control module, ajar and tamper switch inputs from rear compartment lid and vehicle anti-theft system.
