Instrument Panel Module

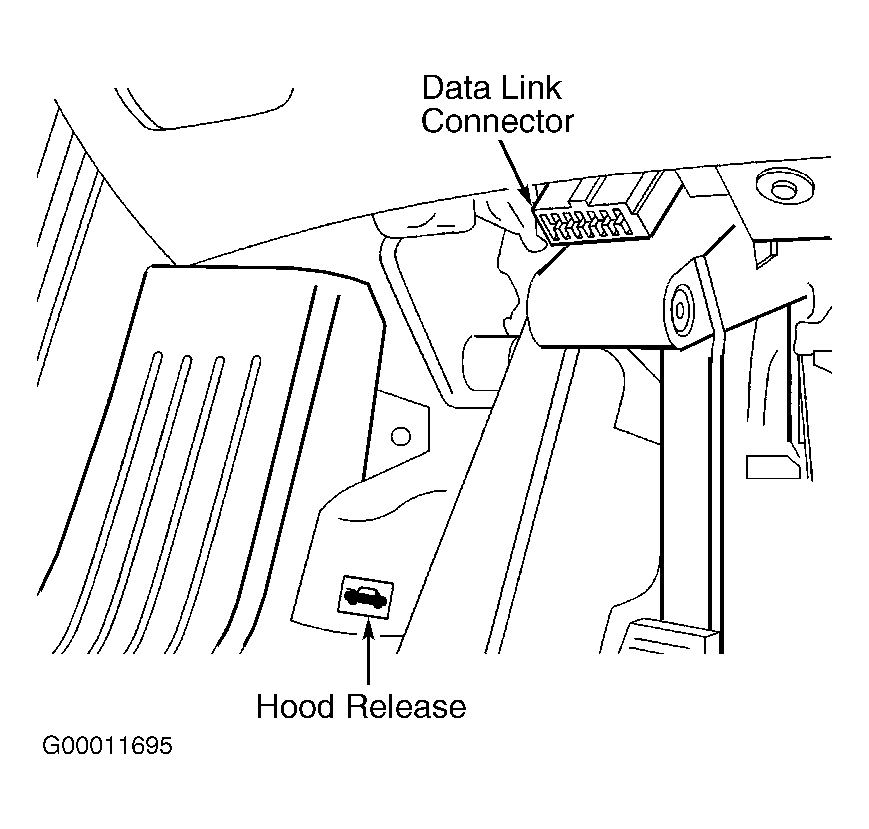

Connect scan tool to Data Link Connector (DLC). See Figure . Turn ignition on. Select INSTRUMENT PANEL MODULE. Select SPECIAL FUNCTIONS. Select MISCELLANEOUS TEST. Select IPM RECALIBRATION. The scan tool will recalibrate IPM with latest version.

To verify proper version has been installed into IPM, select DATA DISPLAY and MODULE INFORMATION to view calibration ID number.
